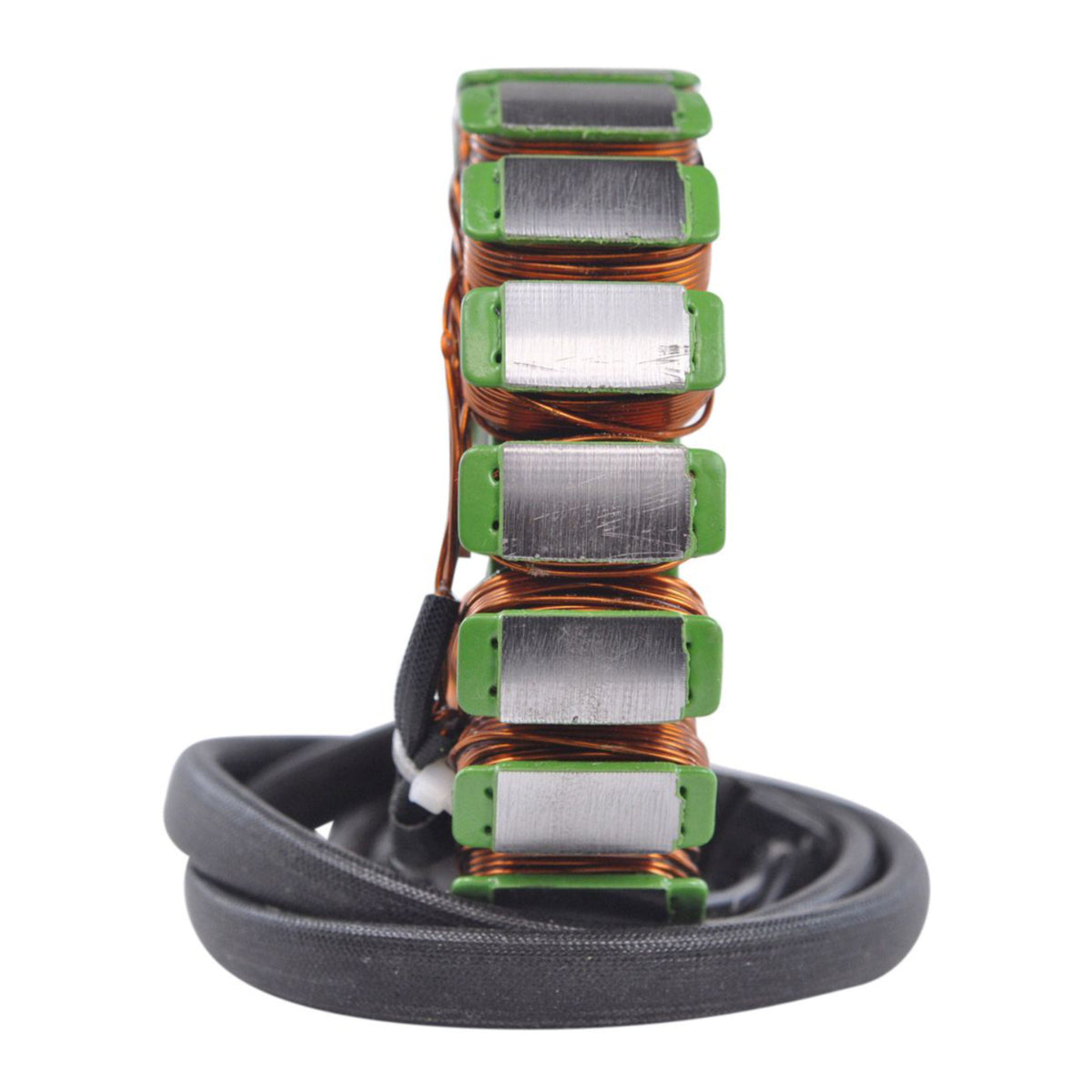

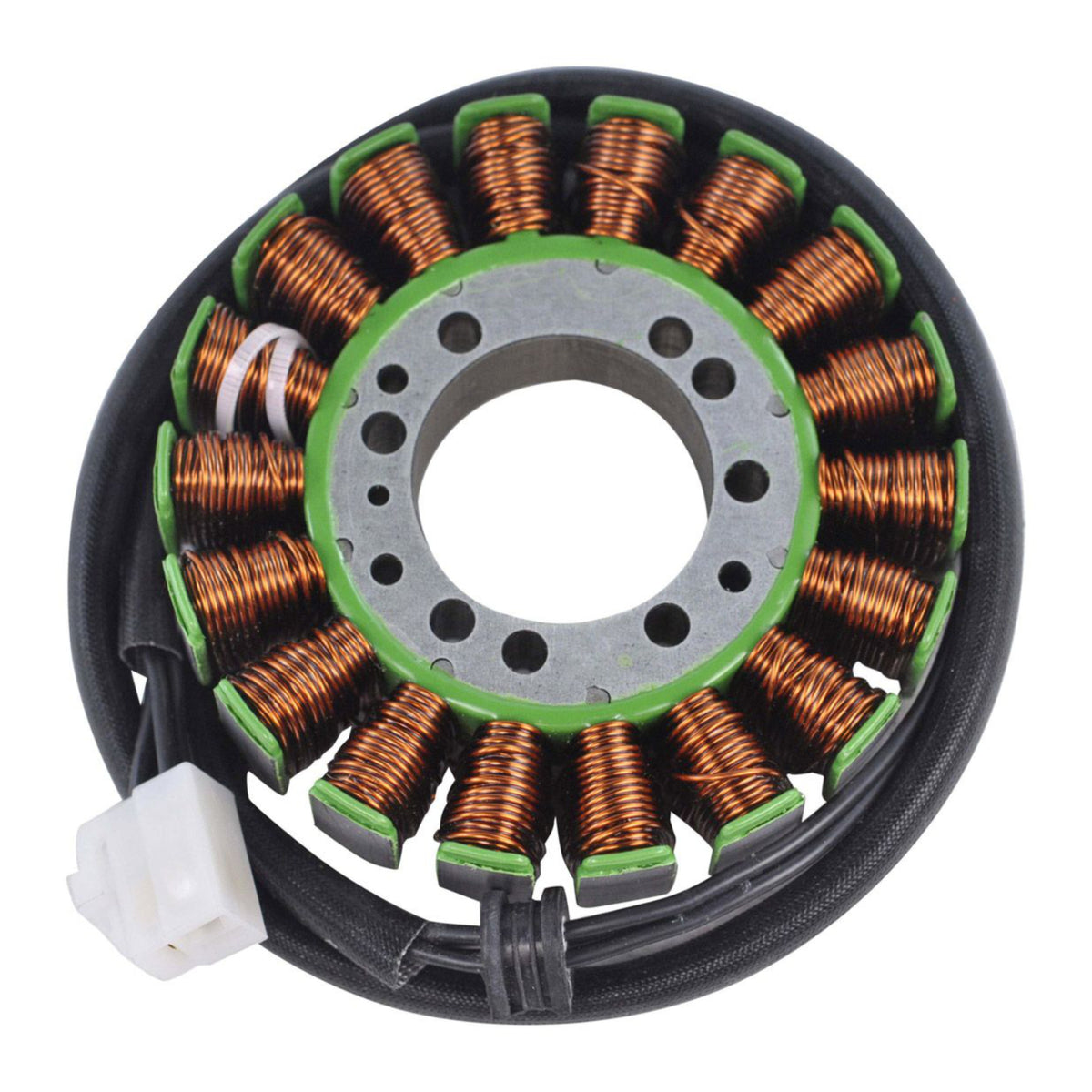

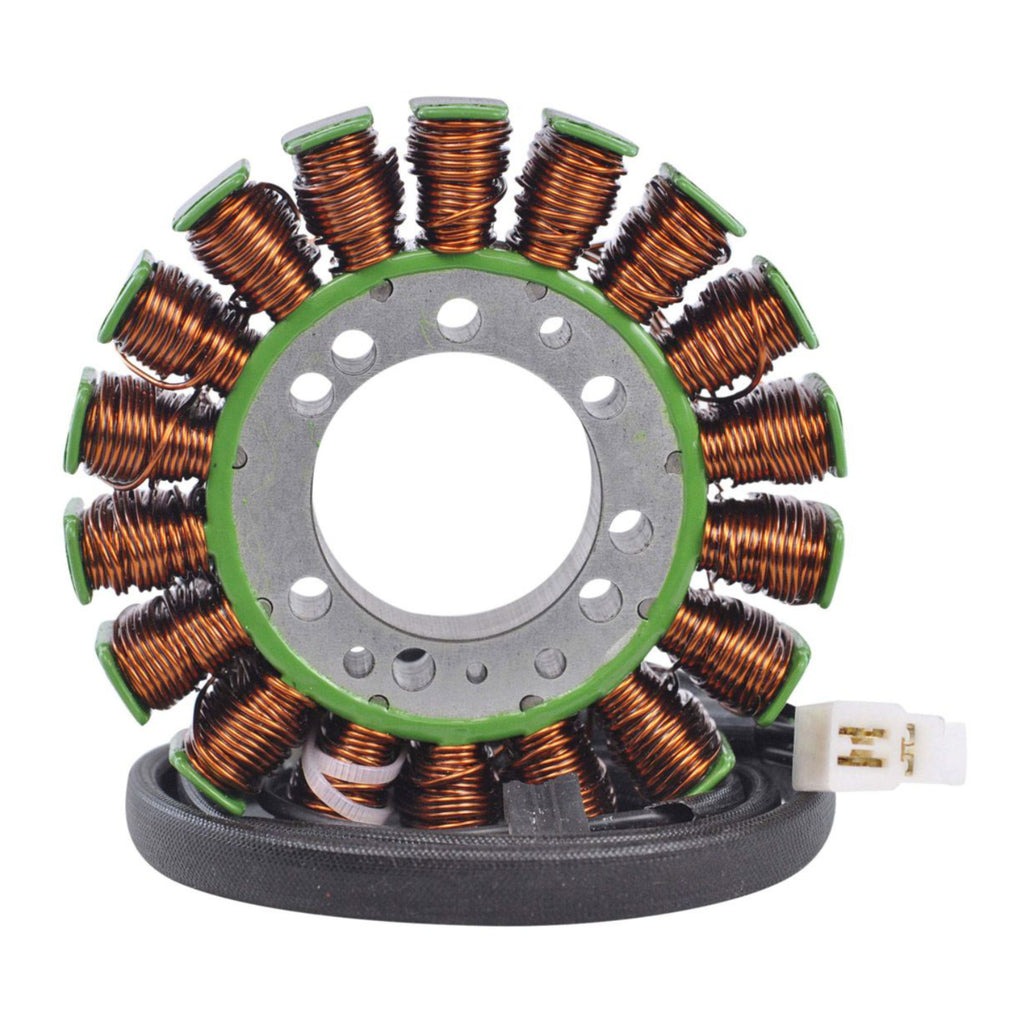

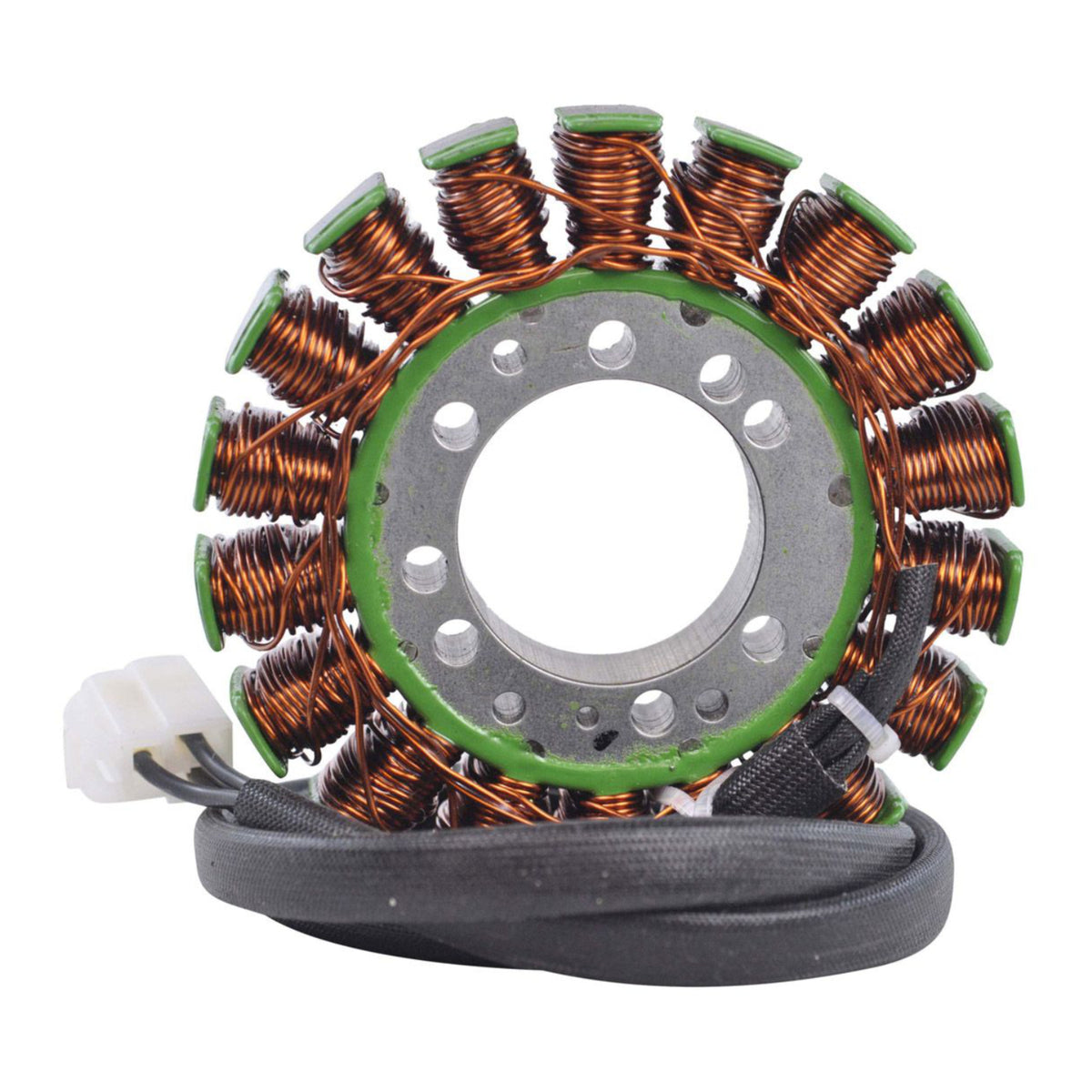

Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- Highest of grade lamination materials
- Highest of grade copper winding, resistant to 200 degrees Celsius.

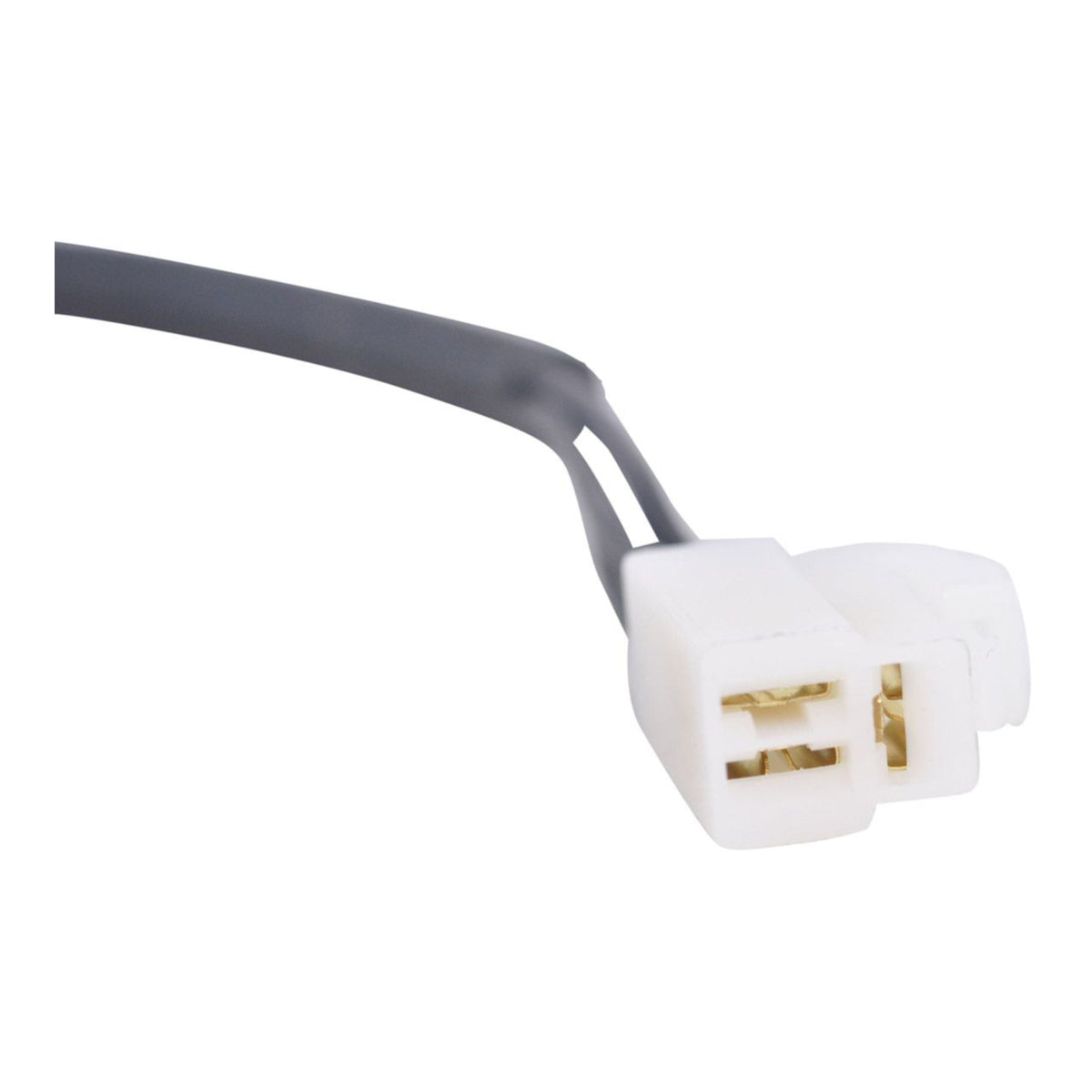

- Connector included
- Rubber grommet included
- All product shipped are tested
Specifications:
-
Dimension:
- Interior Diameter: 42 mm
- Exterior Diameter: 115 mm
- Width: 21 mm
-
Other Specifications:
- Number of Wires: 3
- Number of Plugs: 1
- Number of Terminals: 3
- Harness Length Stator to Grommet: 80 mm
- Harness Length Grommet to Plug: 650 mm
-
Wire to Wire Resistance:
- Alternator: Between each Black = 0.5 ohms +/- 20%
