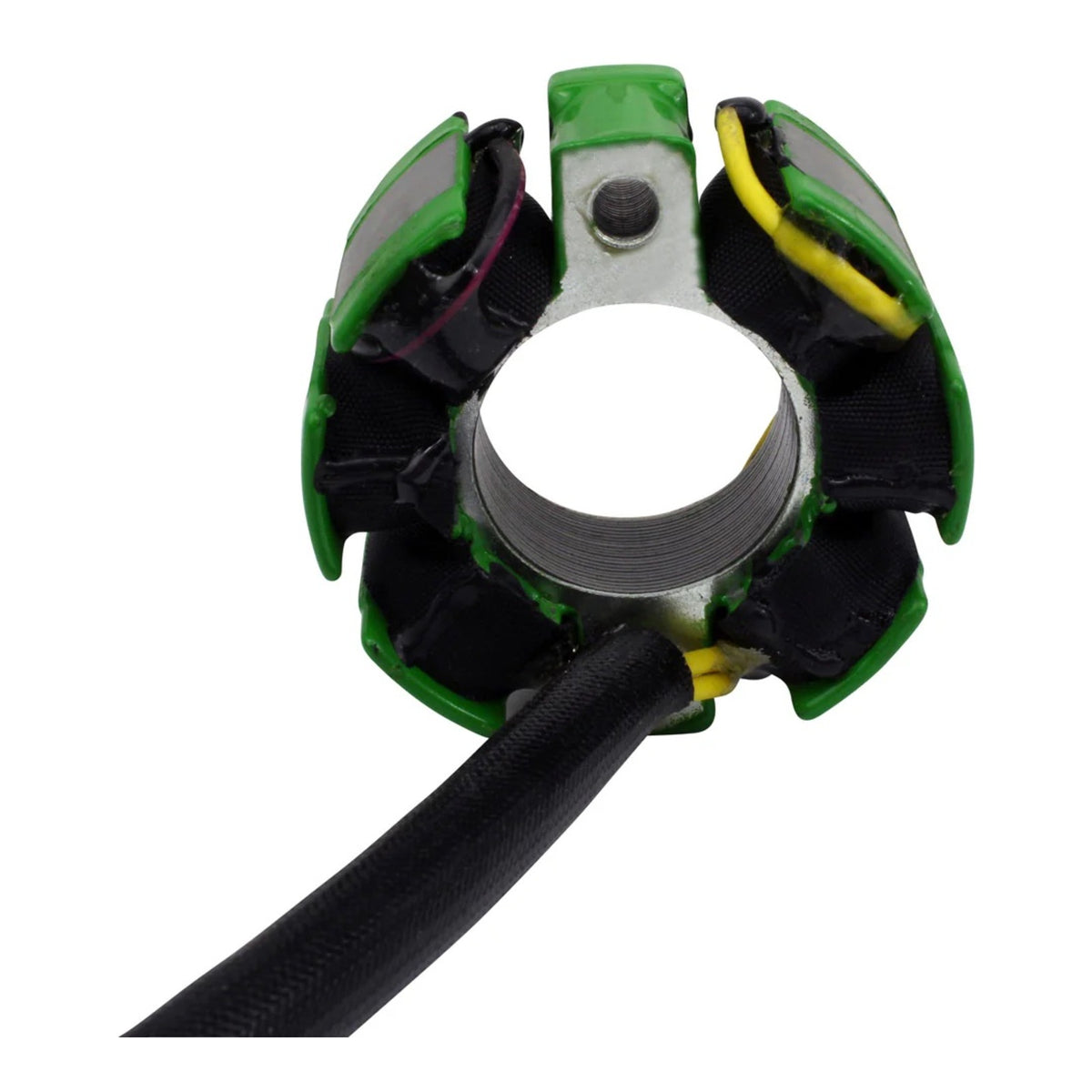

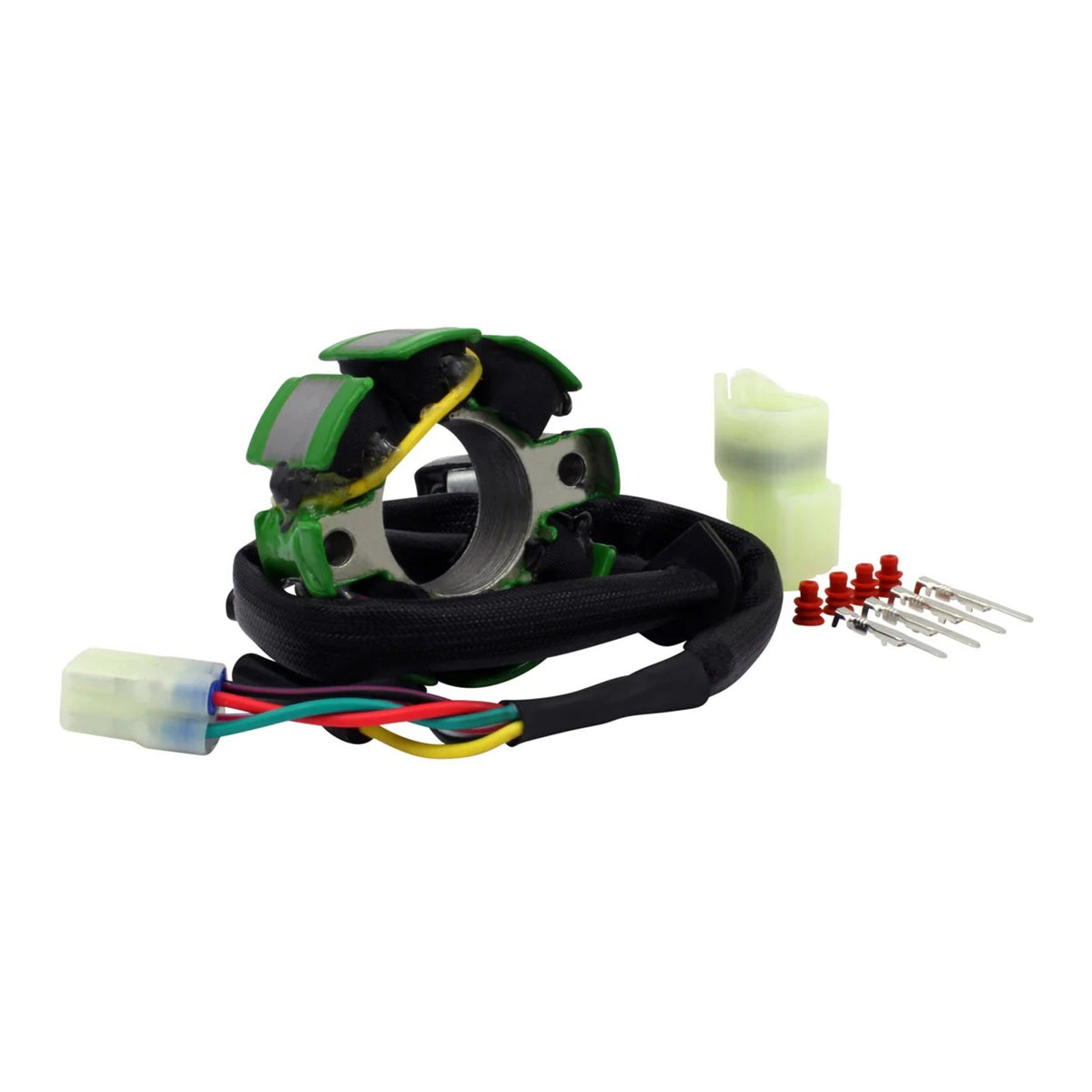

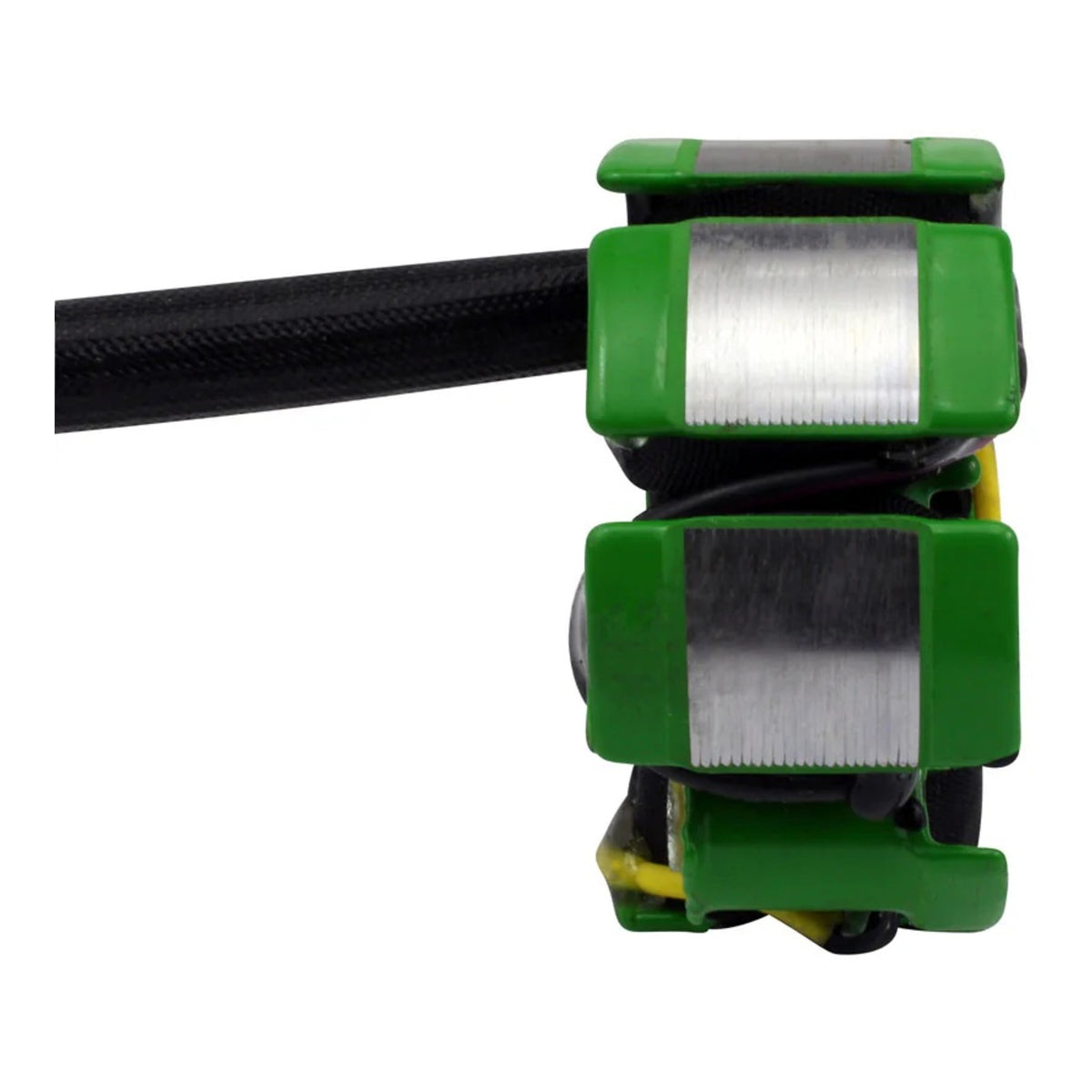

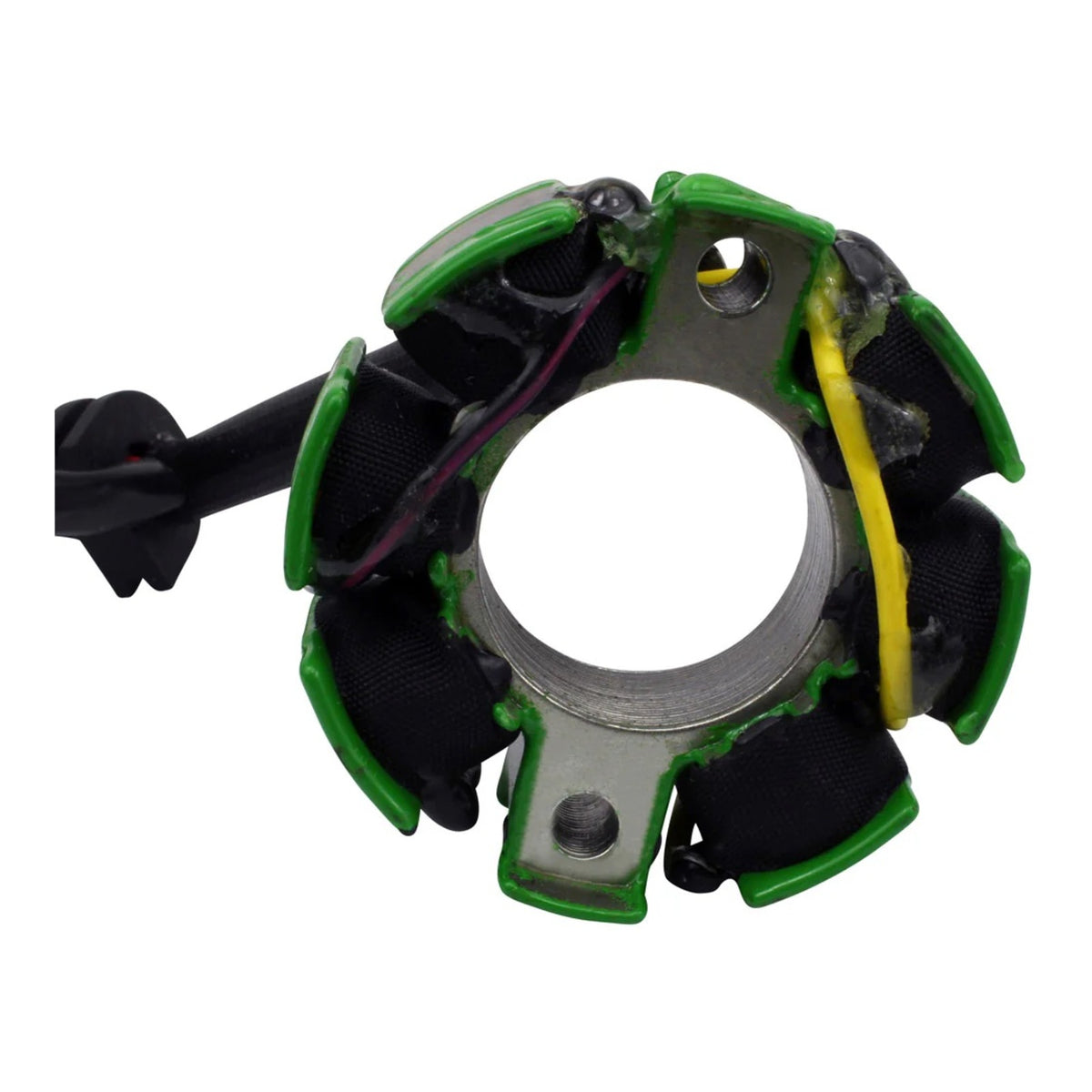

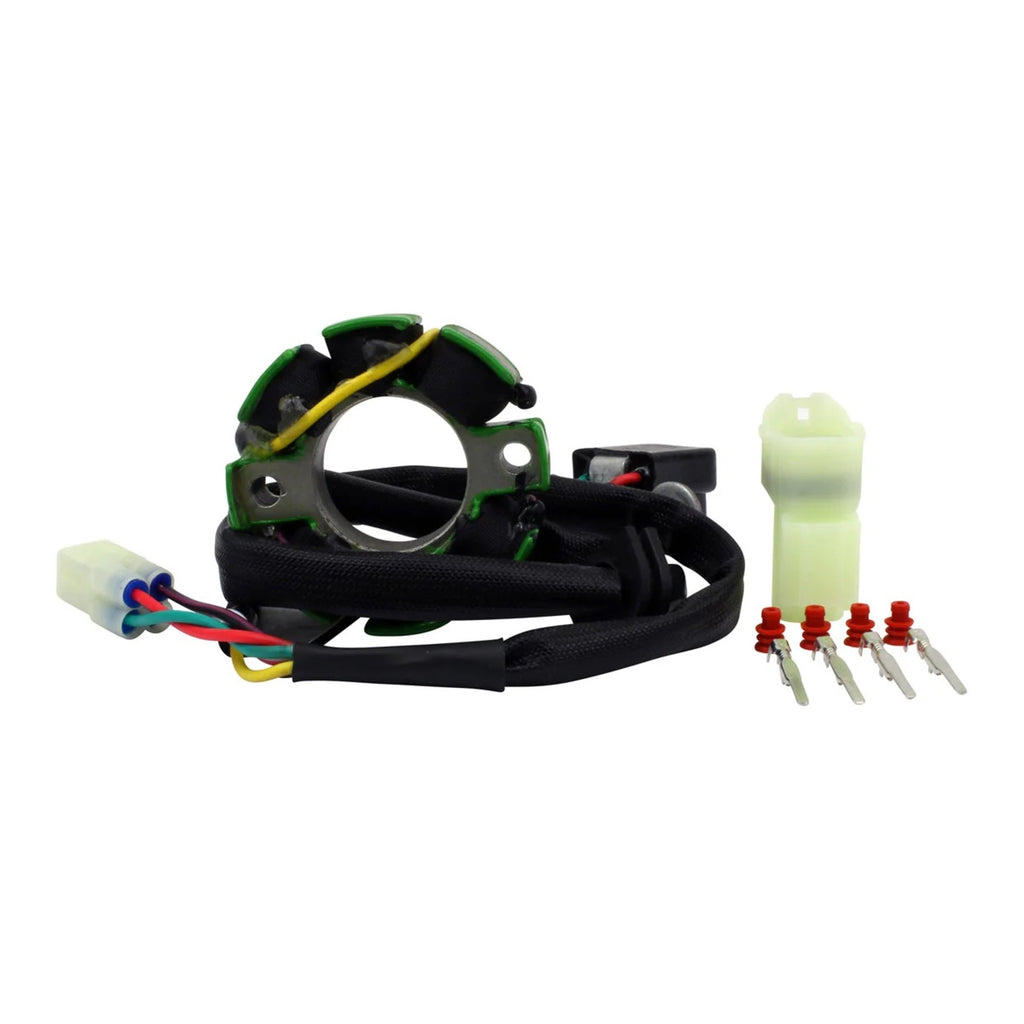

Brand new aftermarket lighting stator.
Features:
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials.
- Highest grade of copper winding, resistant to 200°C.

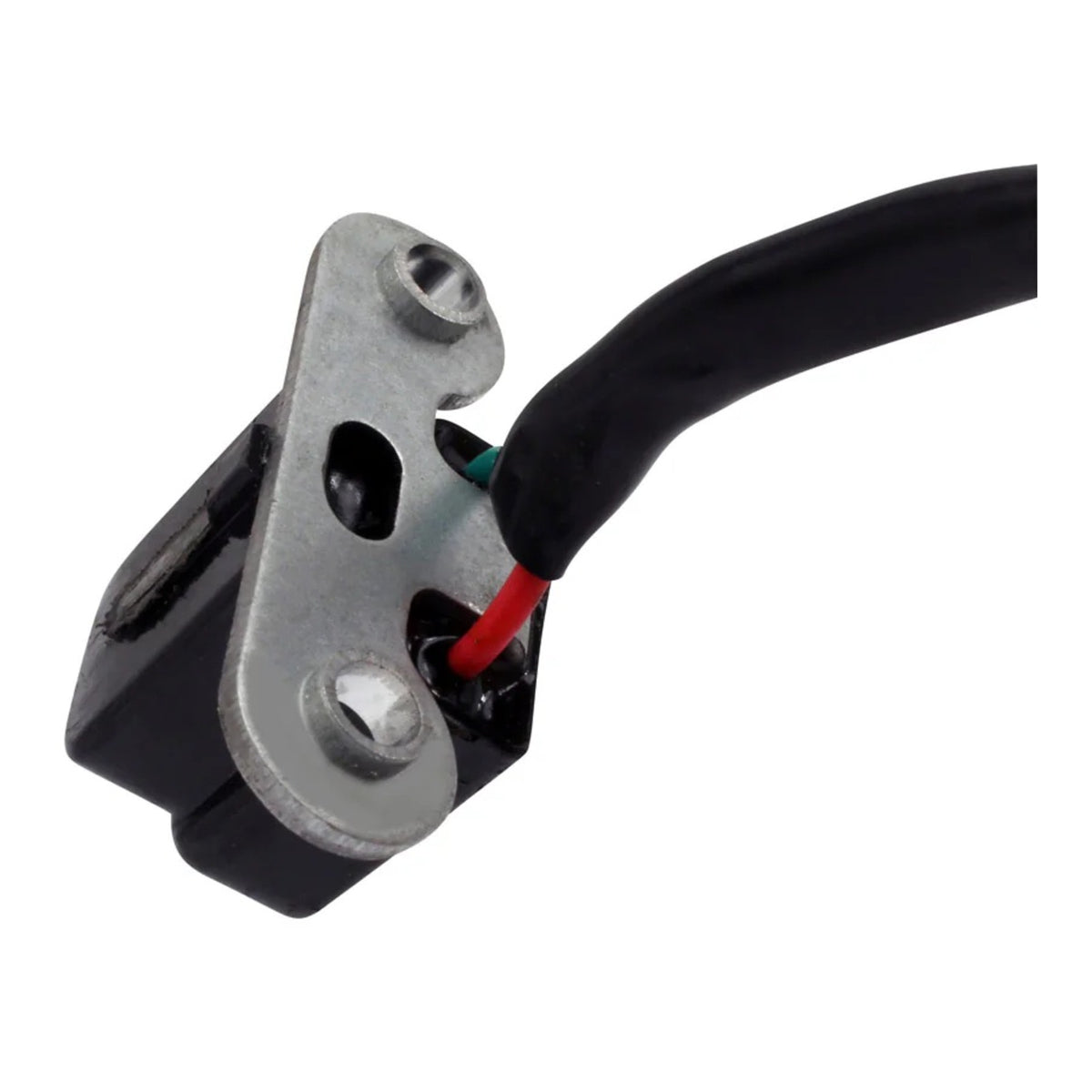

- Pick up pulsar coil included.

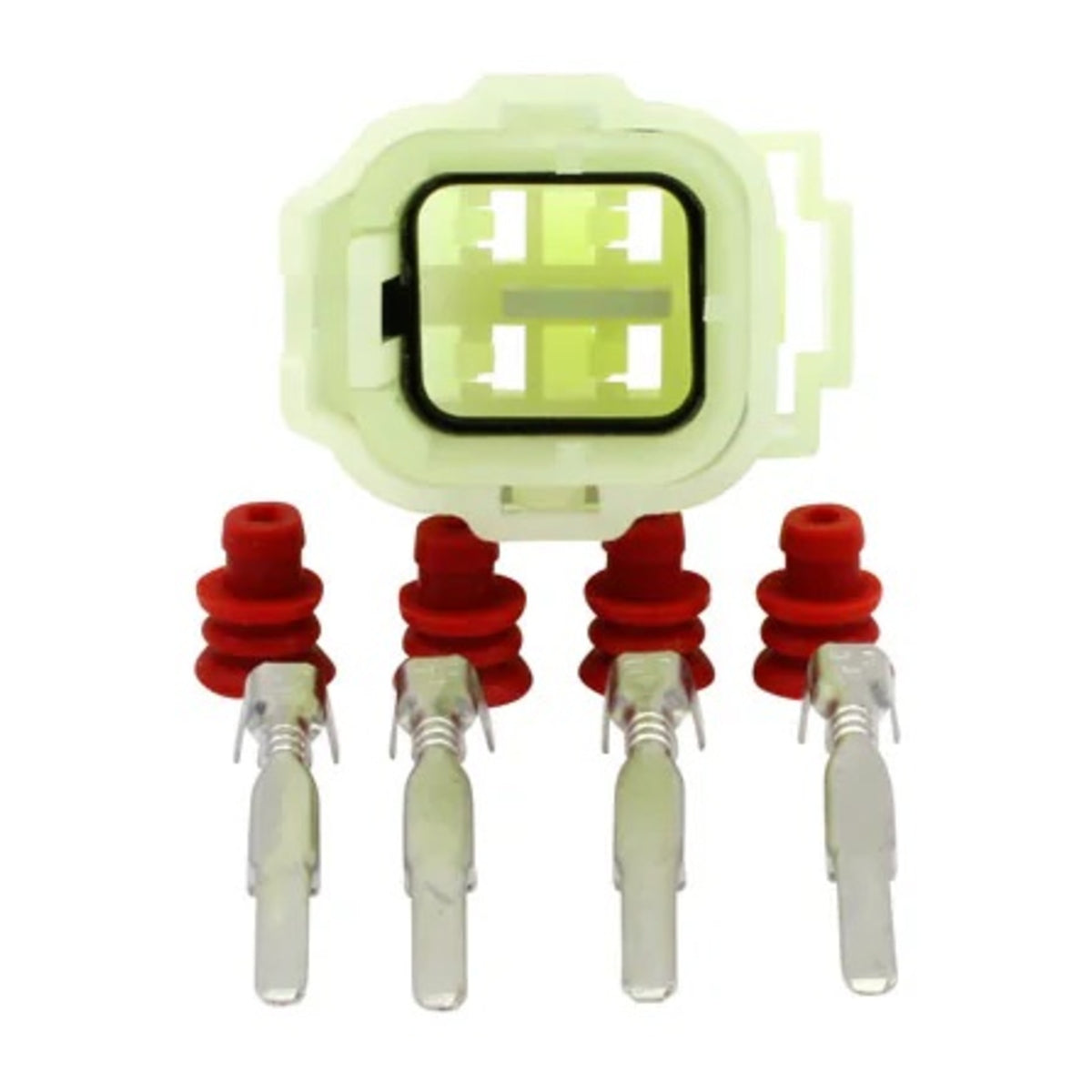

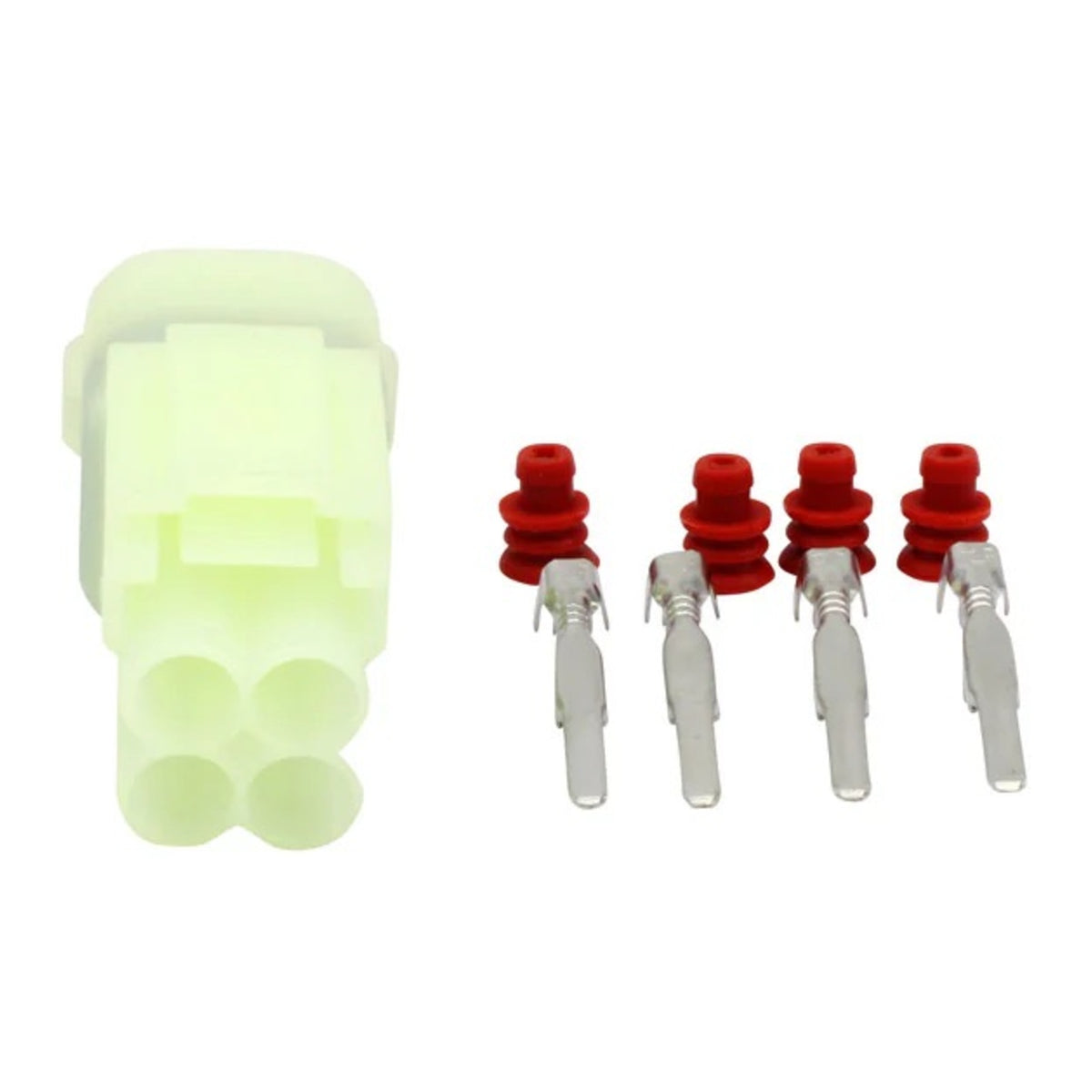

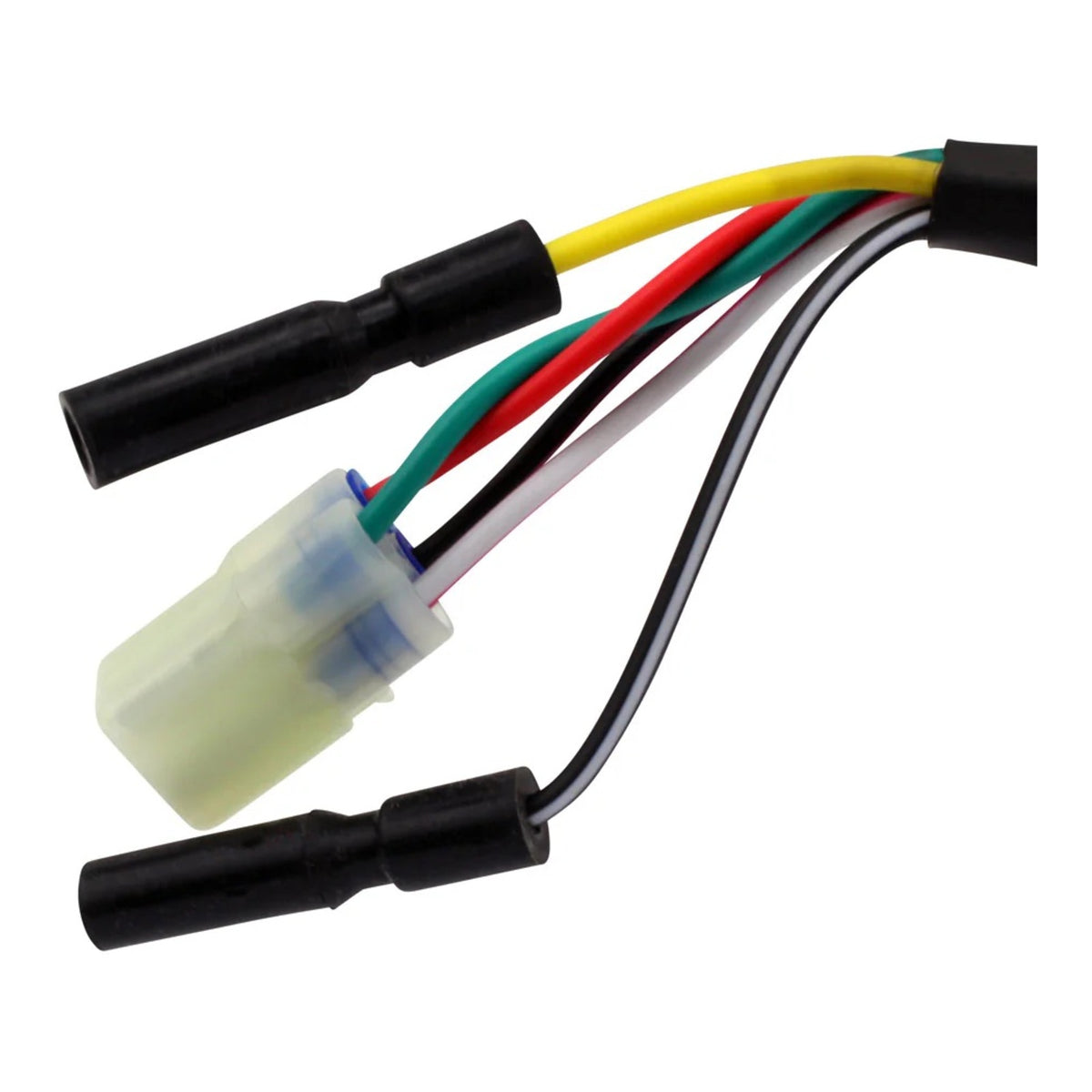

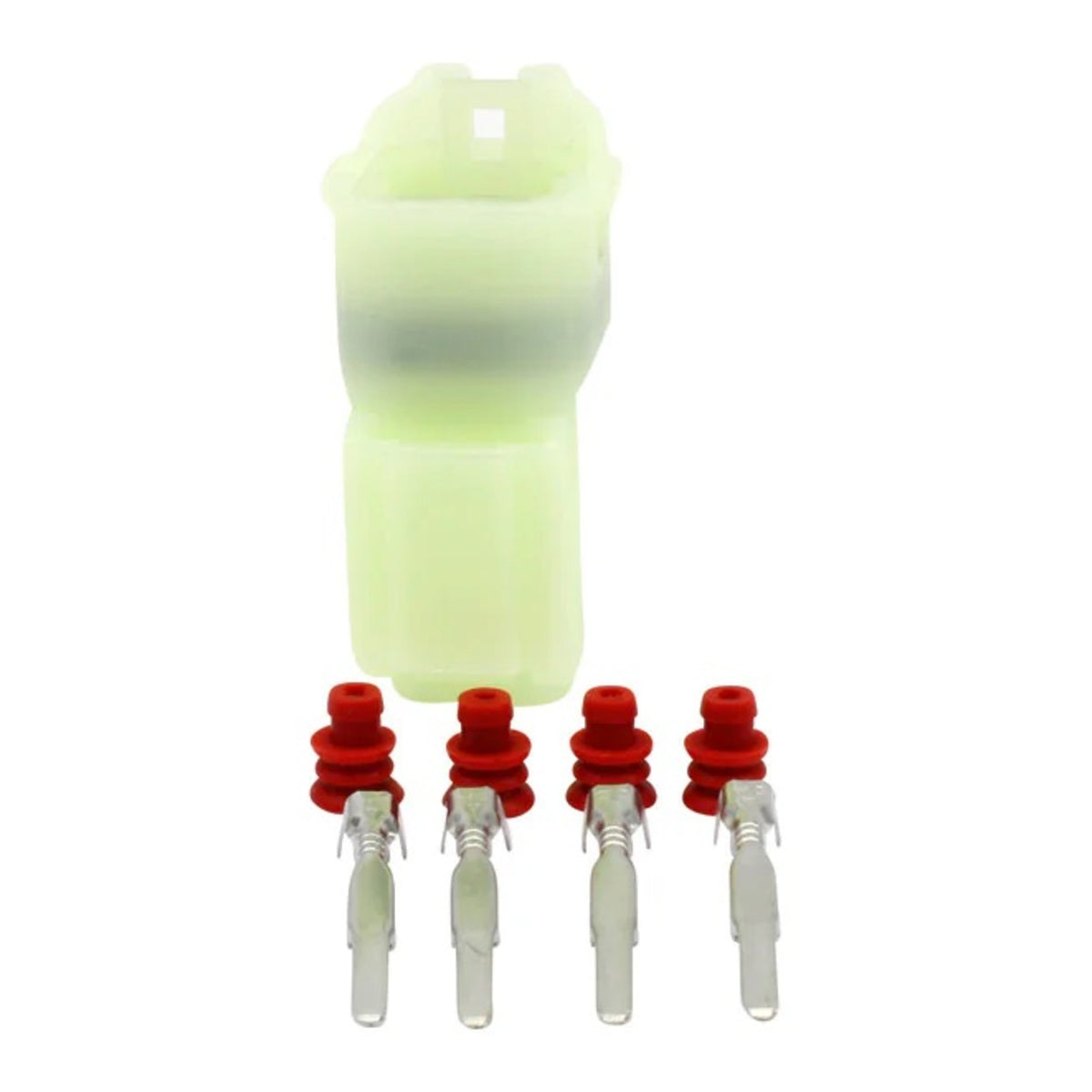

- Connectors included.

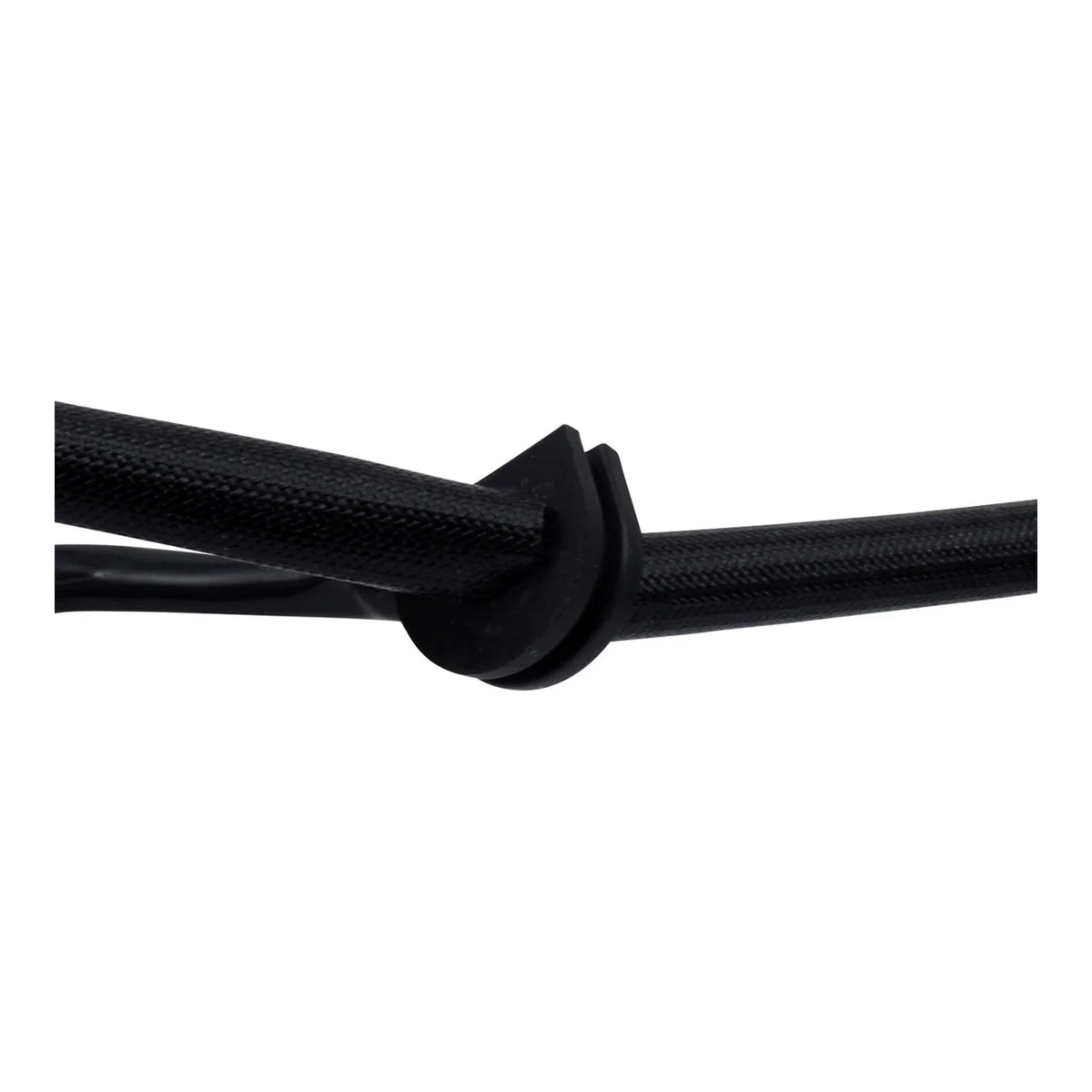

- Rubber grommet included.
- All products shipped are tested.
Specifications
-
Dimensions:
- Interior diameter: 28 mm
- Exterior diameter: 59 mm
- Thickness: 16 mm
- Wire length (stator to grommet): 100 mm
- Wire length (grommet to plug): 400 mm
- Pickup coil wire length (to grommet): 60 mm
-
Other Specifications:
- Number of wires: 4

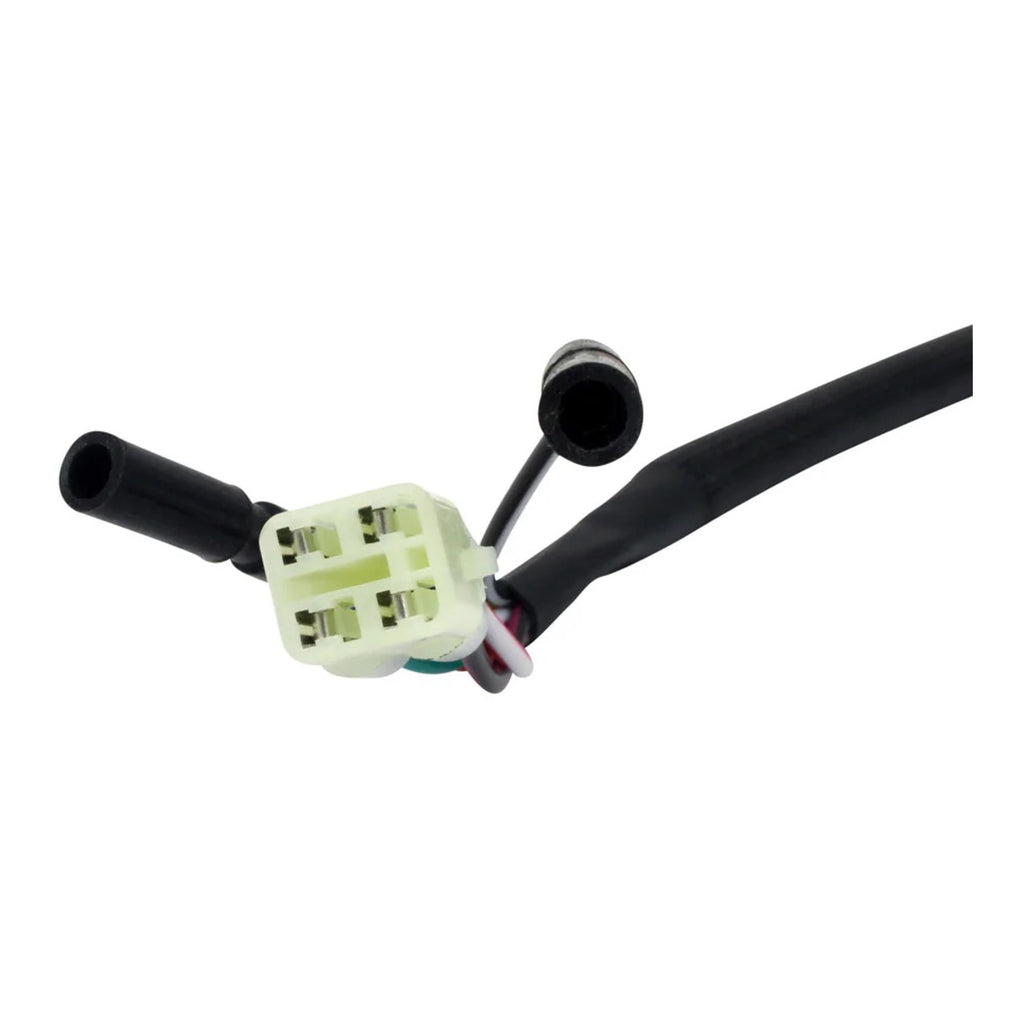

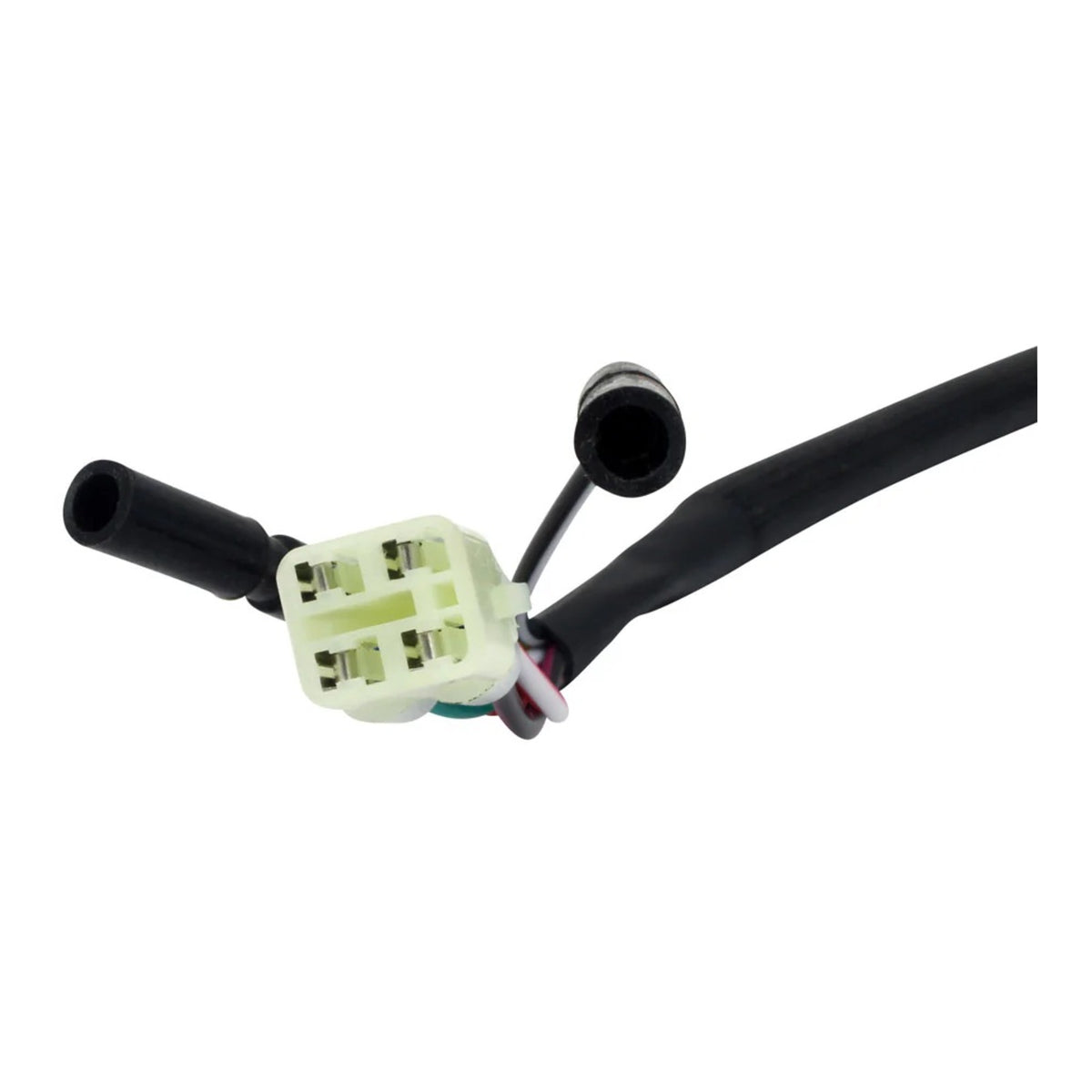

- Number of plugs: 1
- Number of pins: 4
- Number of poles: 6
-
Wire-to-Wire Resistance:
-
Pickup: Red to Green = 100 Ω ±20%
-
Source: Black/Red to Red/White = 35 Ω ±20%
