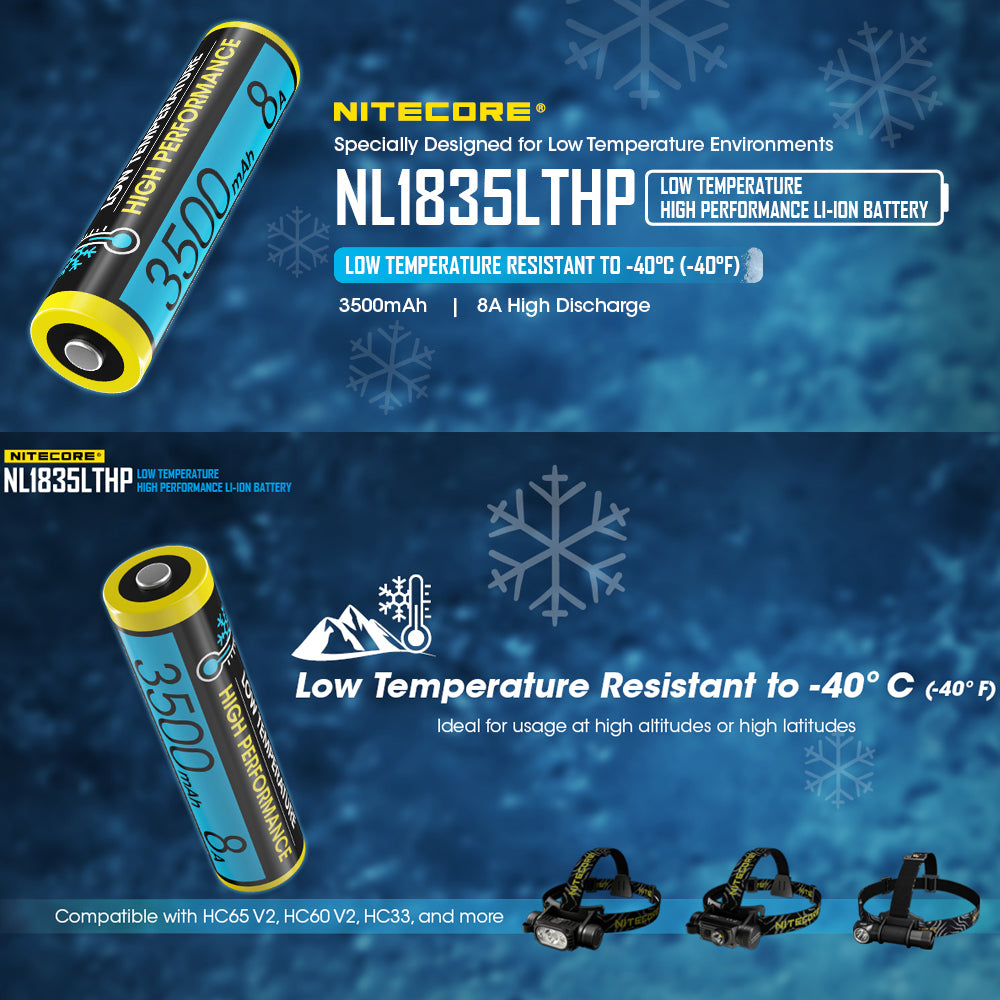

NL1835LTHP: Sepcially Designed for Low Temperature Environments
LOW TEMPERATURE RESISTANT to -40 C

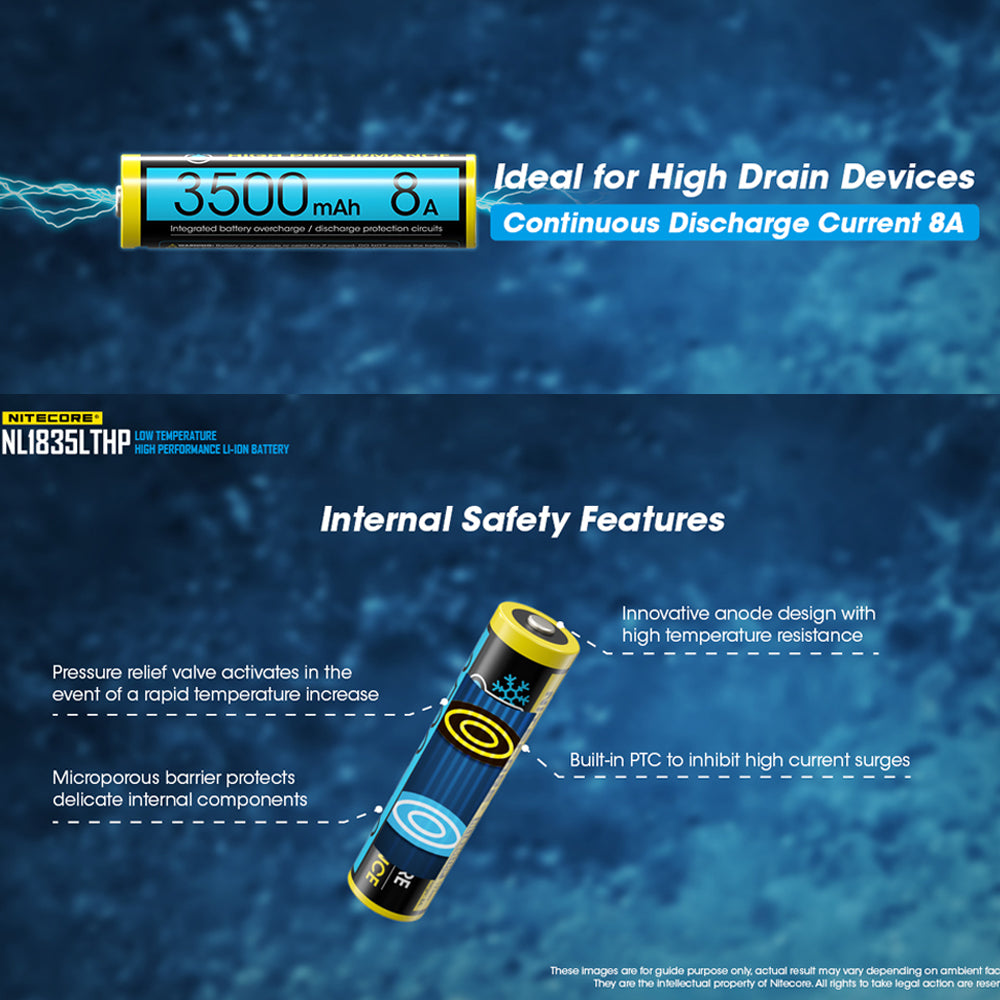

Internal Safety Features:
• Pressure relief valve activates in the event of a rapid temperature increase
• Innovative anode design with high temperature resistance
• Microporous barriers protects delicate internal components
• Built-in PTC to inhibit high current surges
Integrated High Performance Protected Circuit
1 Effective at preventing overcharge, over discharge and short-circuiting
2 Utilizes a high-quality battery protection IC
3 Utilizes two high-power MOS FETs in the current regulation module for better efficiency and superior output
External Safety Features:
1. Equipped at both ends with a nickel-plated stainless steel protector ensuring high impact resistance, good electrical conductivity and oxidation resistance
2. Coated with durable metallic film to guard against abraision
3. Tough plastic circuit board protector
Low Cost and Environmental Friendly
Using a rechargeable Li-ion battery is energy saving to minimize the carbon footprint.

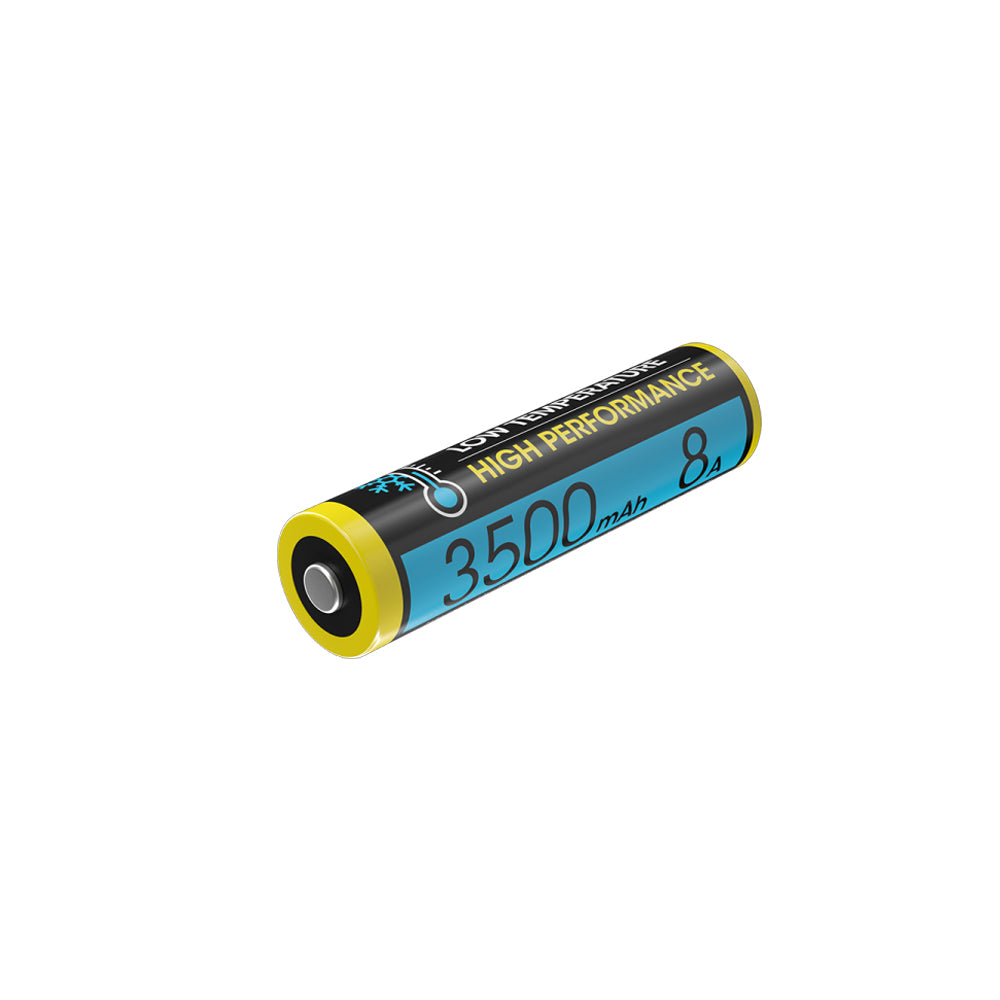

Specifications:
Battery Size: 18650
Positive Terminal: Button Top
Nominal Capacity: 3500mAh
Continuous Discharge Rating: 8A
Nominal Voltage: 3.6V
Maximum Voltage: 4.2V
Protected: Yes, PCB
Rechargeable: Yes
Approx. Dimensions: 18.2mm x 69.1mm
Approx. Weight: 49g
