MK-1588 Motorcycle Cam Chain Tool – Silent Chain Cutting & Riveting Tool Set
MK-1588 is a specialised tool set designed for servicing silent type motorcycle cam chains.
It allows users to cut chains, replace links and rivet cam chains during assembly or repair.
Manufactured from precision CNC-machined components, the tool features a heavy duty mechanism designed for accurate chain work.
The set includes multiple cutting punch sizes along with rivet tools and support components for pressing plates and forming rivets. All parts are supplied in a durable blow moulded storage case.
Use for
Motorcycle cam chain cutting, link replacement and chain riveting.
Features
• Motorcycle cam chain cutting and riveting tool set
• Designed for servicing silent type motorcycle cam chains
• Suitable for cutting chains, link replacement and chain riveting
• Precision CNC-machined components
• Multiple cutting punch sizes included
• Rivet tools for pressing plates and forming rivets
• Supplied in a durable blow moulded storage case

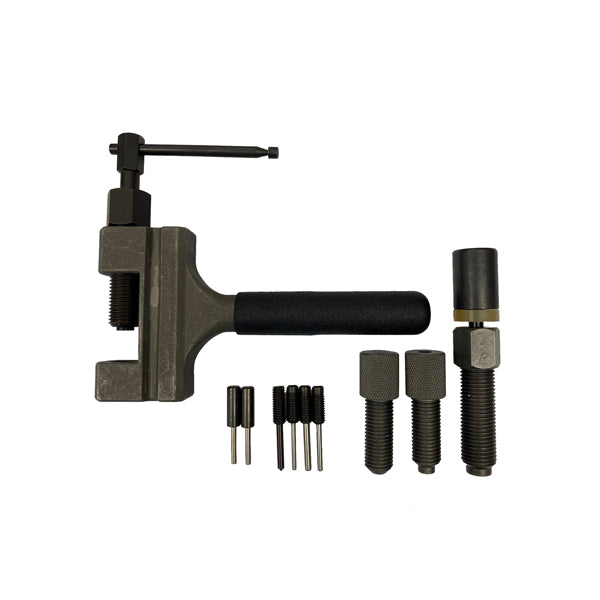

Includes
• “L” frame body with handle

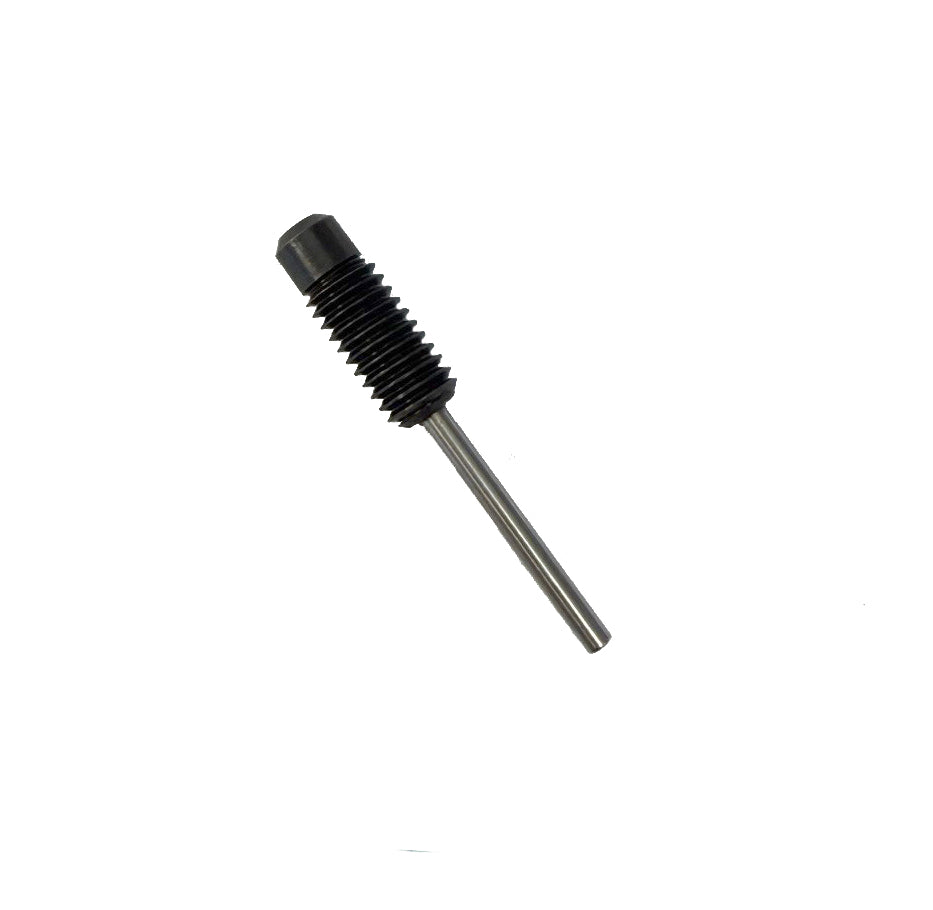

• Cutting punch pins – 2.0 mm, 2.5 mm and 3.0 mm
• “T” pusher bolt driver
• Bored anvil bolt
• Alignment screw bolt

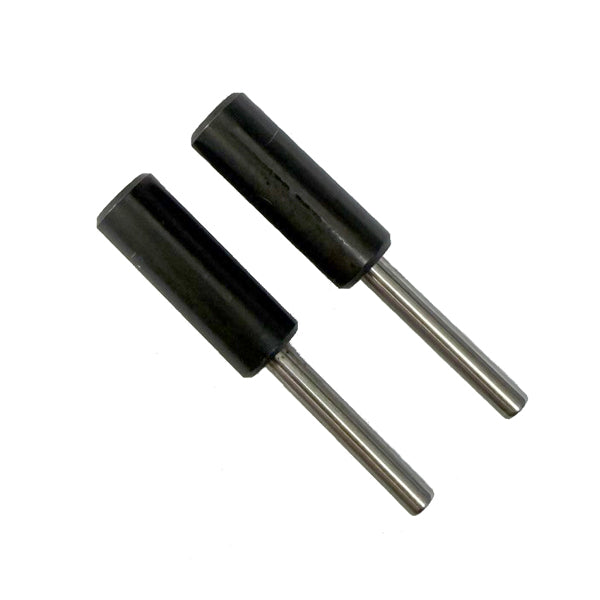

• Extractor pins – 2 pcs (2.5 mm)
• Rivet tip
• Rivet anvil
• Impact rivet pin
• Flare pin
• Blow moulded storage case
Note
When operating the tool, ensure the centre of the chain link pin is aligned vertically and not at an angle.
