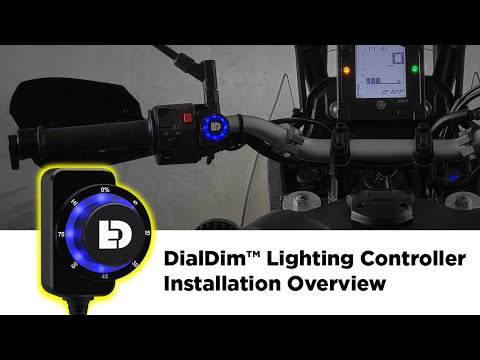

Our ground-breaking DialDim™ Lighting Controller features a
multicolor halo dimming switch that allows you to independently turn on/off
and dim two sets of auxiliary lights from a single consolidated wiring
harness. The LED halo switch displays your exact settings and allows for
effortless dimming on the fly. The blue halo controls light set one and the
green halo controls light set two; simply double click to switch between
the two circuits.
The controller also features high beam, turn
signal, and horn inputs to unlock intelligent flash features that can
cancel your aux lights with your turn signal, flash your aux lights as a
turn signal, or strobe your lights when you sound your
horn.
More Features, More Feedback!
Our
patent-pending multicolor halo dimmer switch can do a whole lot more than
just turn your lights on and off and dim them. For starters, it displays
the exact intensity of both of your lights so you're never stuck guessing
if your lights are on, or what intensity they're set to.
Thanks
to the electronically fused circuits, the halo switch can also display, and
allow you to select, the fuse values for each circuit. And if a fuse trips,
the LED halo will turn red providing real-time feedback and allow for
resetting the fuse.
Last but not least, the switch halo doubles
as a battery monitor with a low-voltage cutoff feature. Our industry-first
design will flash different colors on startup to display your battery
health and automatically shut off your auxiliary lights if the battery
voltage drops below 10.8 volts.
Features:
-
ON/OFF &
Dim - Independently control two sets of lights on/off and
intensity level using the single DialDim™ Switch. The blue halo
controls light set one and the green halo controls light set two. Double
click to switch between the two circuits.
-
High/Low
Sync - Your auxiliary lights will automatically switch between
your selected dim setting to full intensity with the factory high beam
switch. Simply connect the blue input wire to your vehicle's high beam
circuit to enable this feature.
-
Stealth Mode - A
clever 0% dim setting on the switch allows your lights to be "off" during
normal driving conditions but will jump to 100% intensity with your
vehicle's high beam switch. The lights will also react to turn signal and
horn inputs in this mode but will remain off when no inputs are
detected.
-
Cancel with Turn Signal - When enabled
the main lights (blue circuit 1) will cancel in sync with your signal to
prevent "washing out" your factory turn signal. Simply connect the yellow
and orange input wires to your vehicle turn signal circuit to enable this
feature.
-
Flash as Turn Signal - When enabled your
amber visibility lights (green circuit 2) will flash in sync with your
factory turn signals. Simply connect the yellow and orange input wires to
your vehicle turn signal circuit to enable this
feature.>
-
Strobe with Horn - When enabled your
auxiliary lights on both circuits will strobe at 4Hz when you sound your
horn. Simply connect the green input wire to your vehicle horn circuit to
enable this feature.
-
Electronically Fused Circuits
- Both light circuits are electronically fused and can be set right from
the switch itself! The halo will illuminate red to notify you when a
circuit fused is tripped.
-
Voltage Display
Indicator - Upon vehicle startup, the switch halo will flash green
to indicate a healthy battery voltage, or flash red to indicate a battery
voltage that is below 11.8v.
-
Low Voltage Cutoff -
If the battery voltage drops below 10.8v the lights will not power on
preventing you from being stranded. The switch halo will flash 4 red LEDs
to indicate the low voltage condition.
Product
Specs:
- Two fully independent light
circuits
- Eight intensity levels per circuit (5%, 15%, 30%, 45%,
60%, 75%, 100%)
- Eight electronic fuse values (1A, 2A, 4A, 6A, 8A,
10A, 15A, 20A)
- Five feature input wires (ignition, high beam, horn,
left turn, right turn)
- 20A max per circuit (30A max
combined)
- Operating Voltage: 12
VDC
What’s In The Box?
- (1x)
DialDim™ Controller Harness
- (1x) DialDim™
Multi-function Switch
- (1x) 7/8" Handlebar Switch Mount
- (4x)
66" Plug-&-Play Light Extensions
- (1x) Universal Input Trigger
Wire Harness
