Selecting a powered speaker solution should never be a compromise. The Cerwin Vega CV Series speaker line delivers best in class design whether your audio needs are
small, medium or large coverage applications. The CVXL line of five powered speakers single 12”, 15” and dual 15” tops with single 18” and dual 18” subwoofers power
their way through medium to large venues. As a fully integrated solution, the 1500 Watt Class D amplifier (2000 Watts for Subwoofers) runs cool and stays clean, even
in the most demanding environments. Engineered to deliver clarity, rich bass, wide dispersion, and accuracy all the way to the back rows—year after year—the CVXL
line is ideal for Houses of Worship, large venues, hotels and resorts, theaters and outdoor concerts applications. The modern, professional look of Cerwin Vega’s
exclusive new Tour Shield finish is the perfect fit for demanding tours and rentals. When power, ruggedness, and accuracy aren’t optional but essential, you can trust
the CVXL line—the culmination of Cerwin Vega’s 65 years of delivering professional live sound solutions.
KEY BENEFITS
• 1500 Watts Class D Power with 2000 Class D Power for Subwoofers
• 3 Channel Mixer with 2 Combo XLR/TRS Inputs, 1 TS Stereo Input & 3 XLR Outputs
• Main/Monitor and Live/Playback EQ Modes
• Cerwin Vega Proprietary Tour Shield™ Finish
• Cardioid Mode
• Larger 1.75” HF Driver across all models
Specifications
1.75” HF Driver
15” LF Driver
Dispersion 90° x 60°
Powerful 2000 watt Class D Amplifier
Frequency Response (+/- 3dB) 50Hz - 18kHz
Frequency Range (+/- 10dB) 45Hz – 20kHz
Max SPL 135dB

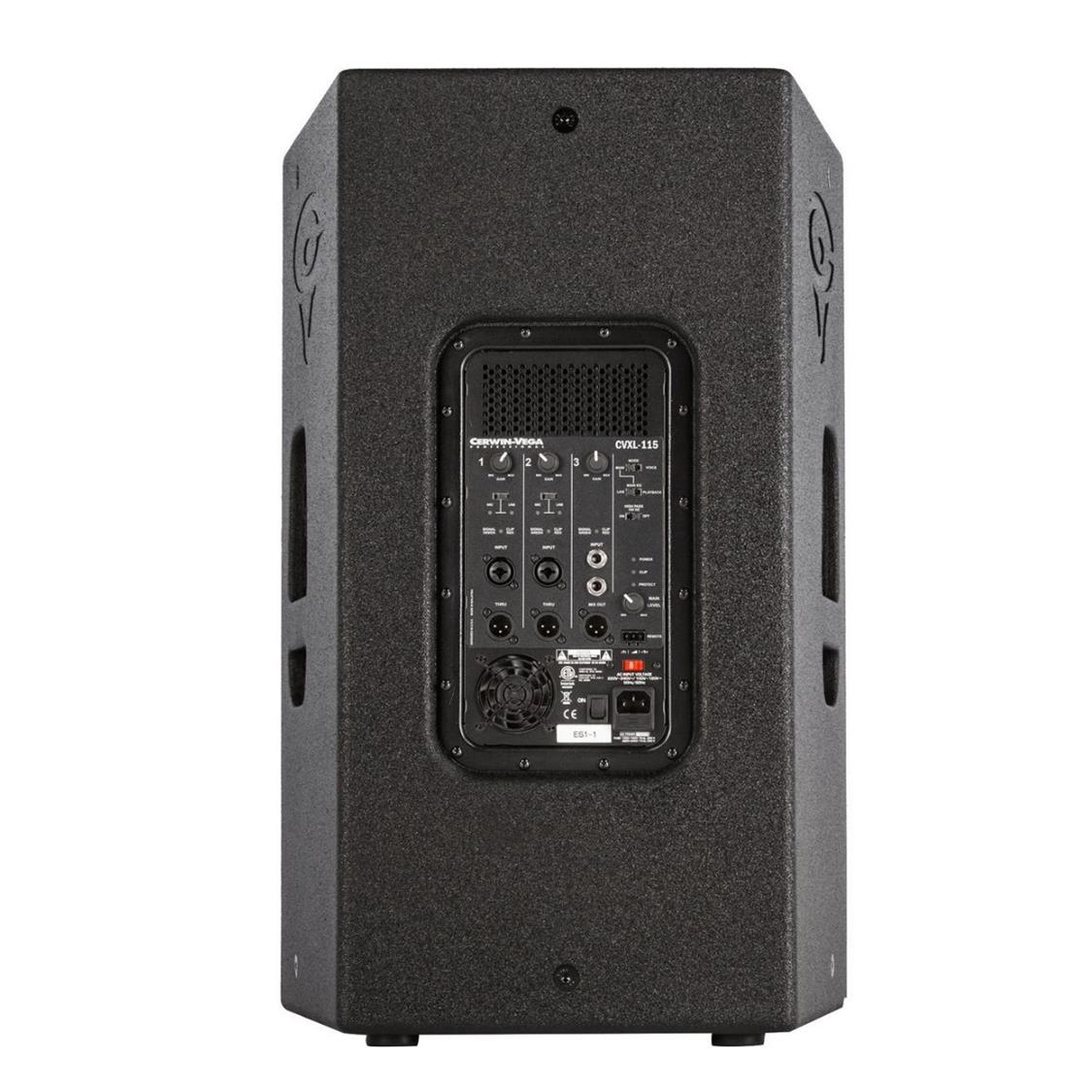

Input/Output
(2) Combo XLR/TRS Inputs
(1) TS Pair Input
(3) XLR Outputs
Switches
Main/Monitor Mode
Live/Playback EQ
High Pass Filter
Enclosure 18mm Birch Plywood with rugged TourShield finish
Dimensions (h x w x d) 721mm x 460mm x 493mm
Weight (lbs) 75
