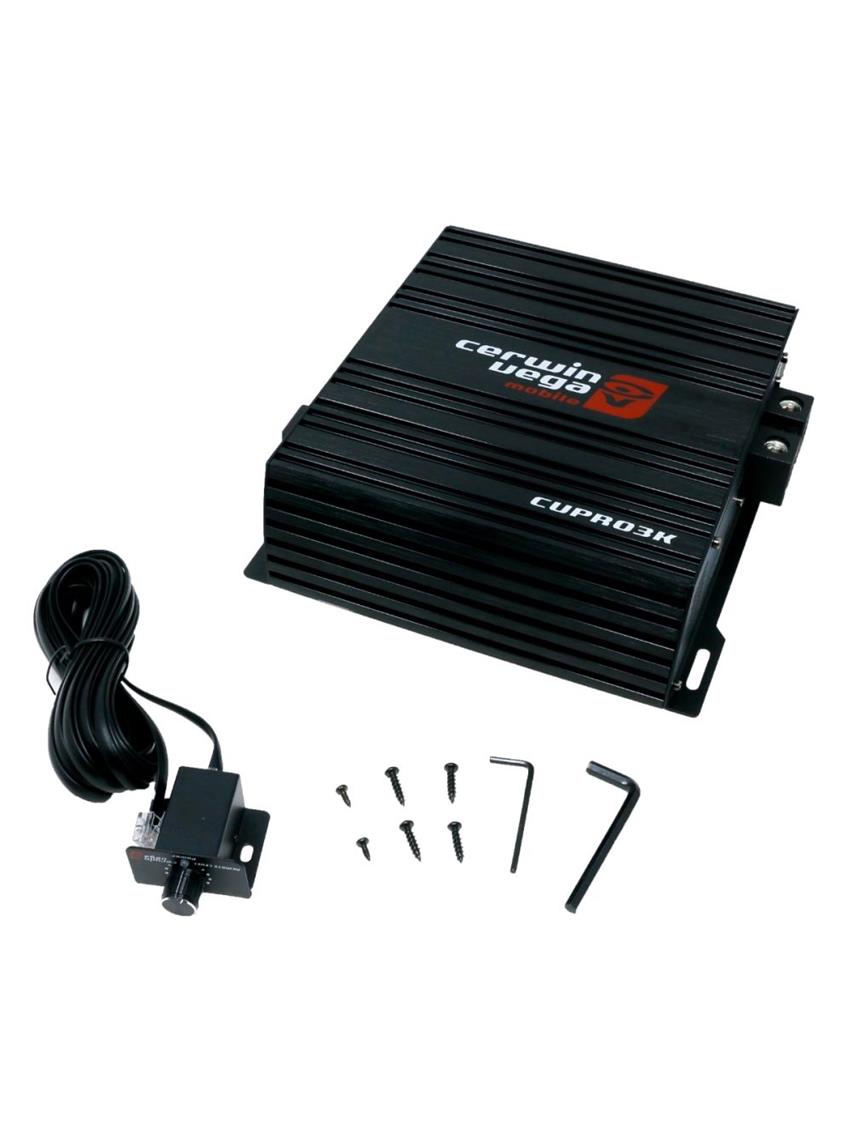

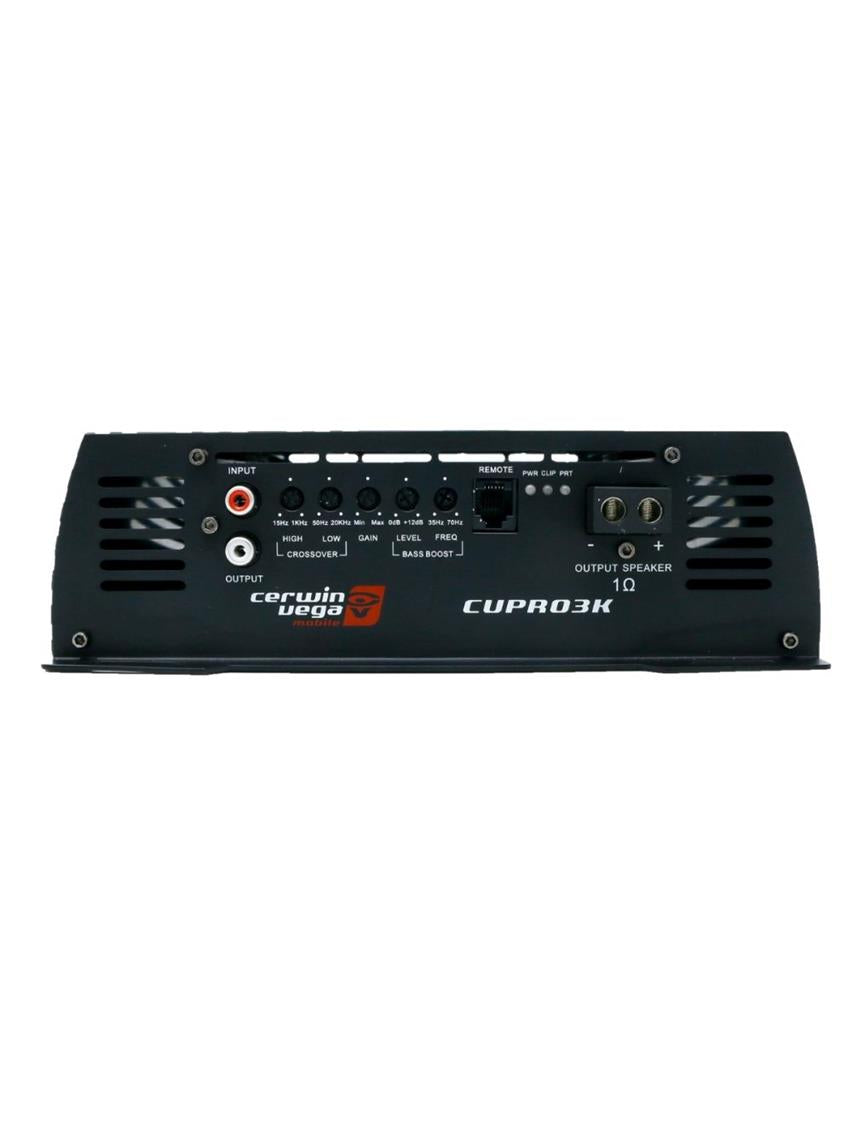

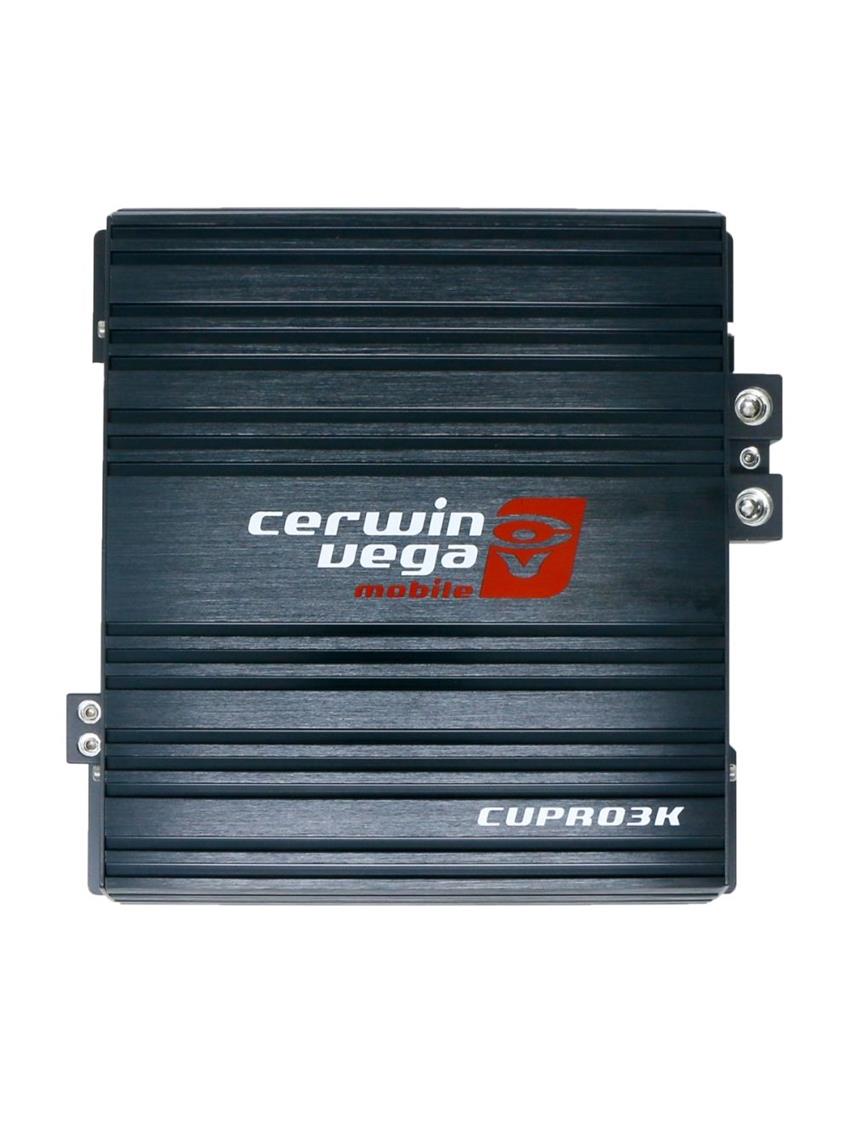

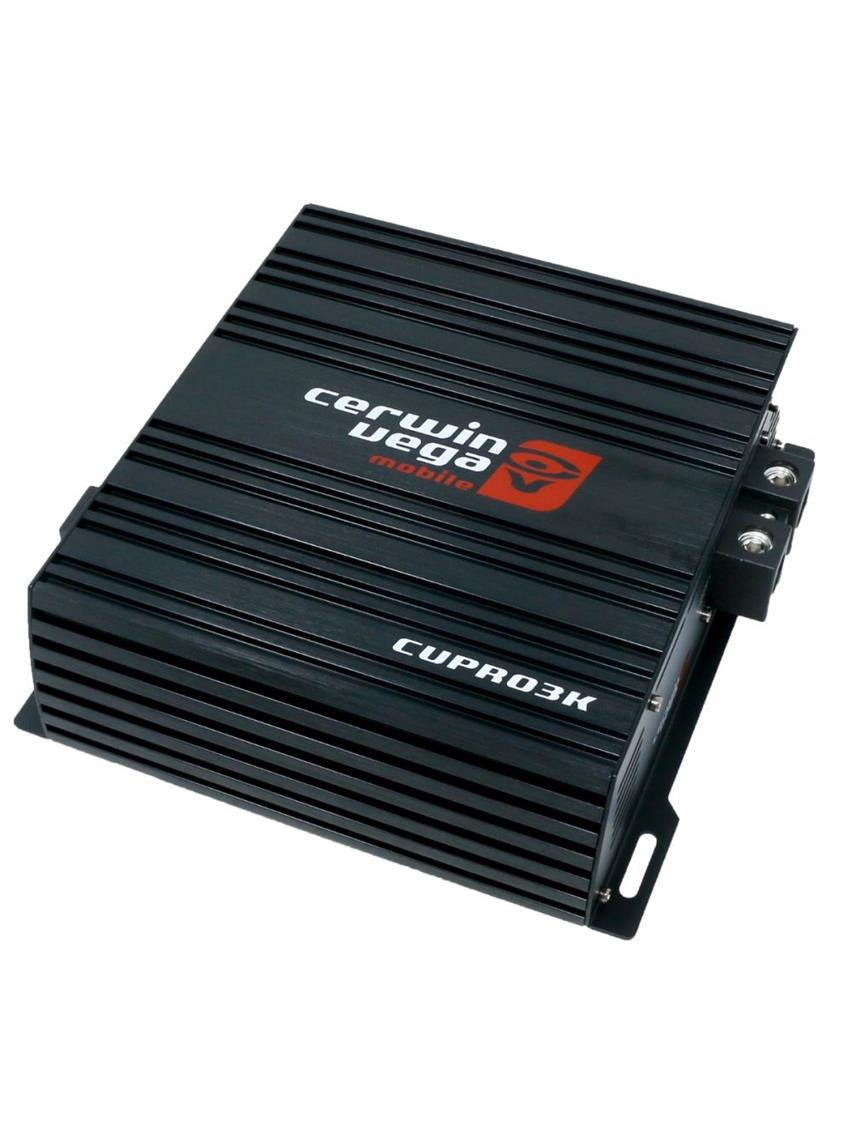

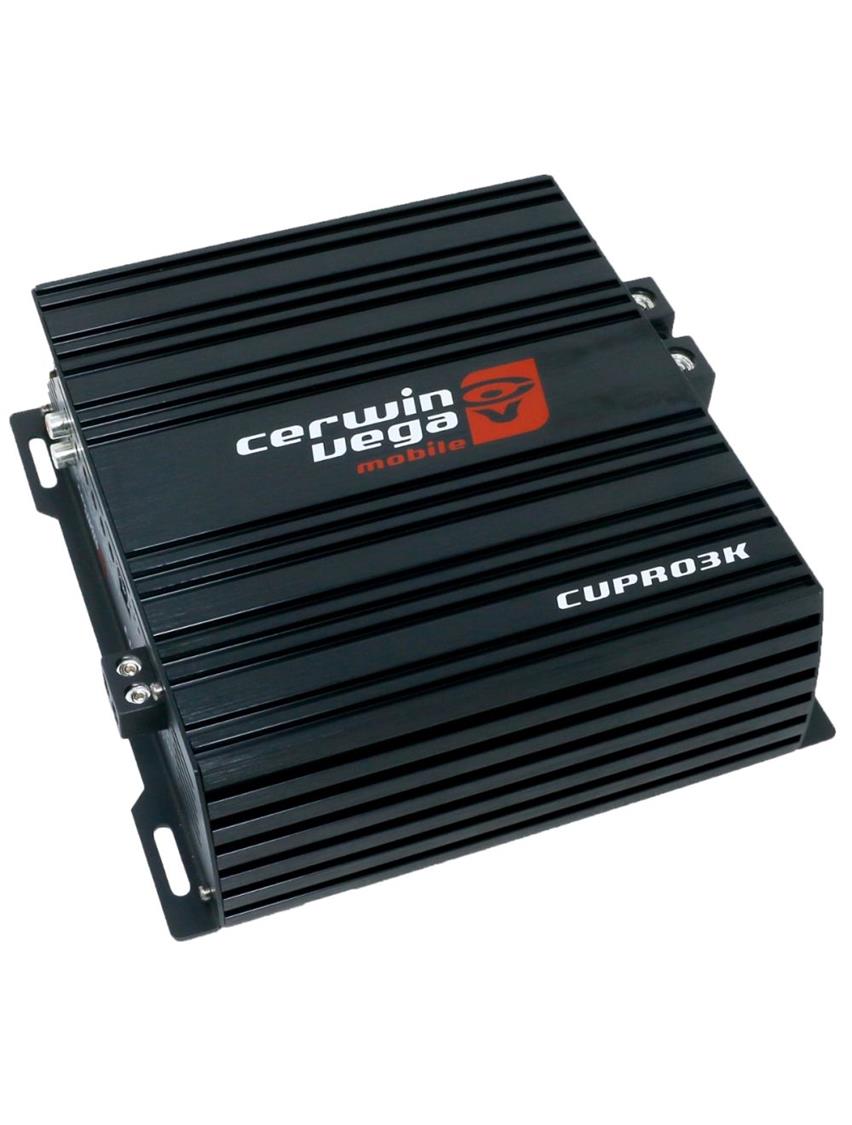

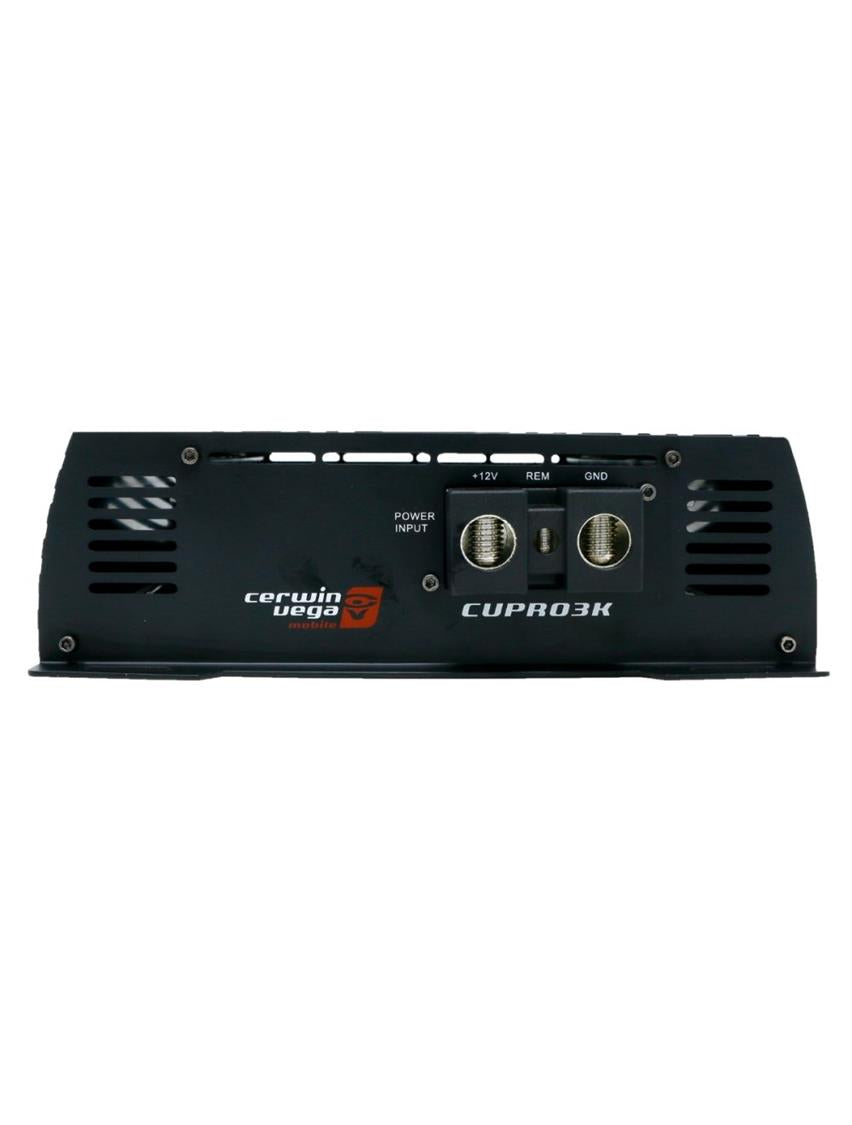

1-Channel CVPRO Series Class-D Monoblock Amplifier 3000 Watts
Key Features:
• 1-channel Class-D Monoblock car audio amplifier
• Up to 3000 watts of high-output power for subwoofer systems
• High-current circuitry for maximum bass performance
• Advanced thermal management for reliable operation
• Built for high-performance car audio and SPL setups
• Efficient Class-D design for powerful, clean bass
Specifications:
POWER RATING
FREQUENCY RESPONSE (HZ): 15HZ-250HZ
RMS POWER PER CHANNEL 4Ω 1100W X 1
RMS POWER PER CHANNEL 2Ω 2050W X 1
RMS POWER PER CHANNEL 1Ω 3000W X 1
POWER SUPPLY
- Power Supply: Full PWM
- Power Supply Threshold: 10.0V-17.0V
- Idle Current: 2.6A
DISTORTION
- THD 4 (1KHz @4Ω): 0.1%
- S/N Ratio (A weighted @1W): -90dBA
- S/N Ratio (A weighted @FP): -105dBA
INPUT SENSITIVITY
- Low Input Level: 0.2V-5.0V
- High Input Level: 0.2V-5.0V
INPUT IMPEDANCE
- Low Input Level: 20KΩ
- High Input Level:
OUTPUT STAGE
- Output Impedance: 0.0297Ω
- Damping Factor: >150
- Bandwidth (-3dB): 15Hz-20KHz
CROSSOVER (-12dB/Oct)
- Variable High-Pass: 50Hz-20KHz
- Variable Low-Pass: 15Hz-1KHz
- Variable Sub-Sonic: 15Hz-1KHz
FUSE RATINGS (RECOMMENDED 1/2 THE FULL CURRENT DRAW FOR FUSING)
DIMENSIONS
- L x W x H: 7.95”x 8.8”x 2.6” (202mm x 225mm x 66.5mm)
FEATURES
- Caution High Current Draw Amplifier
- Recommended 0/1 Gauge OFC Power/Ground Wire
- LED Power/Protect Status Light
- LED Clipping Indicator Light
- Selectable Bass Frequency: 35Hz-70Hz
- Variable Bass Boost: 0dB-12 dB
- Wired Remote Bass Level Control Included
- 1-year Manufacturer's Warranty
- MFR #: CVPRO3K
CVPRO3K User Manual:
https://cdn.shopify.com/s/files/1/0645/1711/1988/files/CVPRO_SERIES_AMPLIFIERS_MANUAL.pdf?v=1763357942
