Description:
The CV PRO series amplifiers quench the thirst of those power-hungry speakers & subwoofers that call for enormous power to make the ground pound. Designed and engineered to generate maximum power output, the CV PRO series amplifiers delivers 1000W to 10,000W of MAX power that will produce bass mayhem and make your speakers & subwoofers flex and shiver like never before. For the ultimate SPL experience, you cannot go wrong with CV PRO series amplifiers!
Key Features:
• 4-channel full range Class D car audio amplifier
• High-efficiency digital amplifier design for powerful output
• Flexible system configuration for speakers or bridged setups
• High-current performance for demanding audio systems
• Rugged construction with advanced thermal management
• Designed for high-output car audio installations
Features:

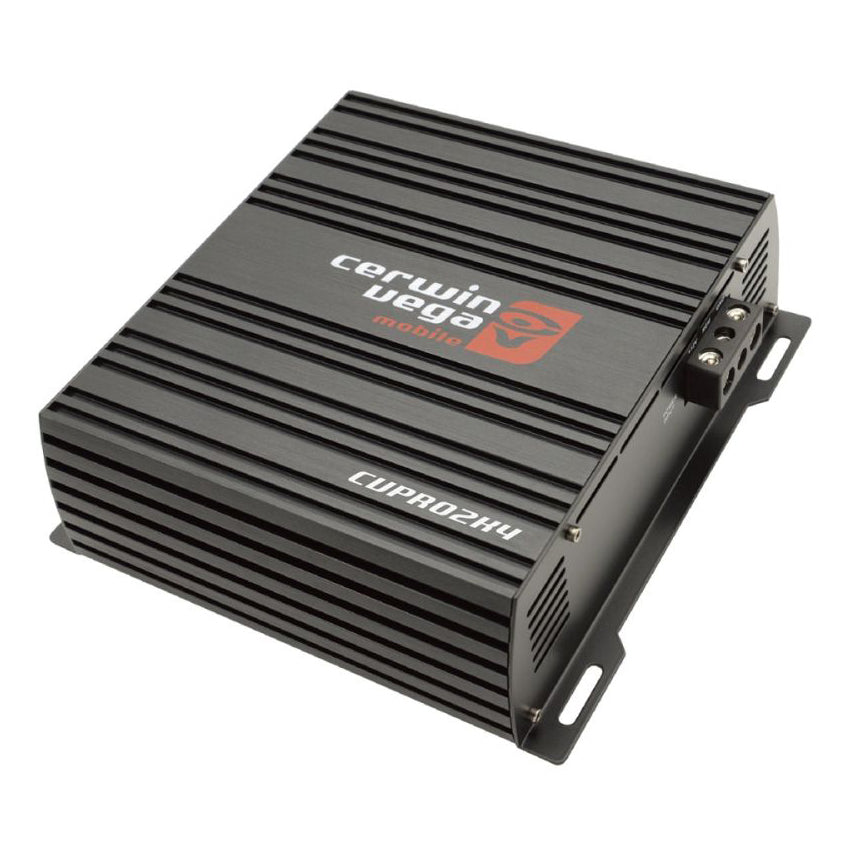

CVPRO Series Class D 2 ohms Stable 4-Channel Amplifier
POWER RATING
FREQUENCY RESPONSE (HZ): 15HZ-250HZ
RMS POWER PER CHANNEL 4Ω 325W X 4
RMS POWER PER CHANNEL 2Ω 520W X 4
RMS POWER PER 2 CHANNELS BRIDGED 4Ω 1000W X 2
POWER SUPPLY
- Power Supply: Full PWM
- Power Supply Threshold: 10.0V-17.0V
- Idle Current: 2.6A
DISTORTION
- THD 4 (1KHz @4Ω): 0.1%
- S/N Ratio (A weighted @1W): -90dBA
- S/N Ratio (A weighted @FP): -105dBA
INPUT SENSITIVITY
- Low Input Level: 0.2V-5.0V
- High Input Level: 0.2V-5.0V
INPUT IMPEDANCE
- Low Input Level: 20KΩ
- High Input Level:
OUTPUT STAGE
- Output Impedance:
- Damping Factor: >150
- Bandwidth (-3dB): 15Hz-1KHz
CROSSOVER (-12dB/Oct)
- Variable High-Pass: 50Hz-6KHz
- Variable Low-Pass: 15Hz-1KHz
- Variable Sub-Sonic: 15Hz-1KHz
FUSE RATINGS (RECOMMENDED 1/2 THE FULL CURRENT DRAW FOR FUSING)
DIMENSIONS
- L x W x H: 10.4”x 8.8”x 2.6” (265mm x 225mm x 66.5mm)
FEATURES
- Caution High Current Draw Amplifier
- Recommended 0/1 Gauge OFC Power/Ground Wire
- LED Power/Protect Status Light
- LED Clipping Indicator Light
- Selectable Crossover: High Pass/Flat/Low Pass
- Variable Bass Boost: 0dB-12 dB
- 1-year Manufacturer's Warranty
- MFR #: CVPRO2K4
CVP Pro Amp User Manual:
https://cdn.shopify.com/s/files/1/0645/1711/1988/files/CVPRO_SERIES_AMPLIFIERS_MANUAL.pdf?v=1763357942https://cerwinvega.com/amfile/file/download/file/5/product/332/
