CERWIN VEGA AMPLIFIER CVP SERIES MONO 370W RMS @ 4OHM / 600W RMS @ 2OHM

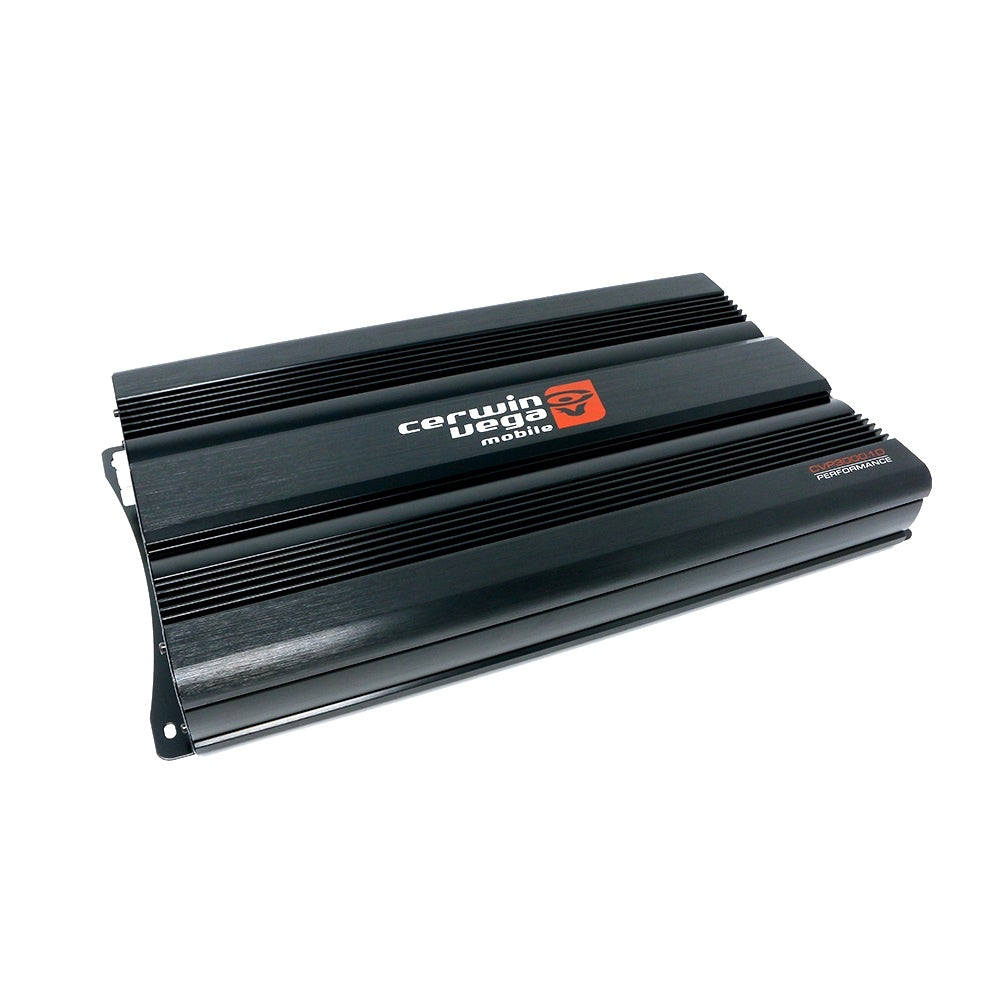

CVP3000.1D – 1-Channel 3000W Class A/B Monoblock Amplifier

Features

• Latest High-Efficiency Class A/B Topology
• Compact Size with Ambient backlit logo
• RCA “Pass Thru” output for easy system expansion
• Fully Variable Crossovers (12dB per octave)
• Handles HI and LO level input to 12V
• Proprietary Vega Bass Boost EQ Up To 12dB

Specifications

• 1 Channel Amplifier
• 370W x 1 @ 4Ω RMS
• 600W x 1 @ 2Ω RMS
• Class A/B
• Direct Short, Thermal, & Overload Circuits Protect Amplifier
• Power Supply 10-16VDC
• Sensitivity 200mV-6V
• Variable 12dB High, Low, & Subsonic Crossovers
• Fuse Rating - 30 Amp x 3

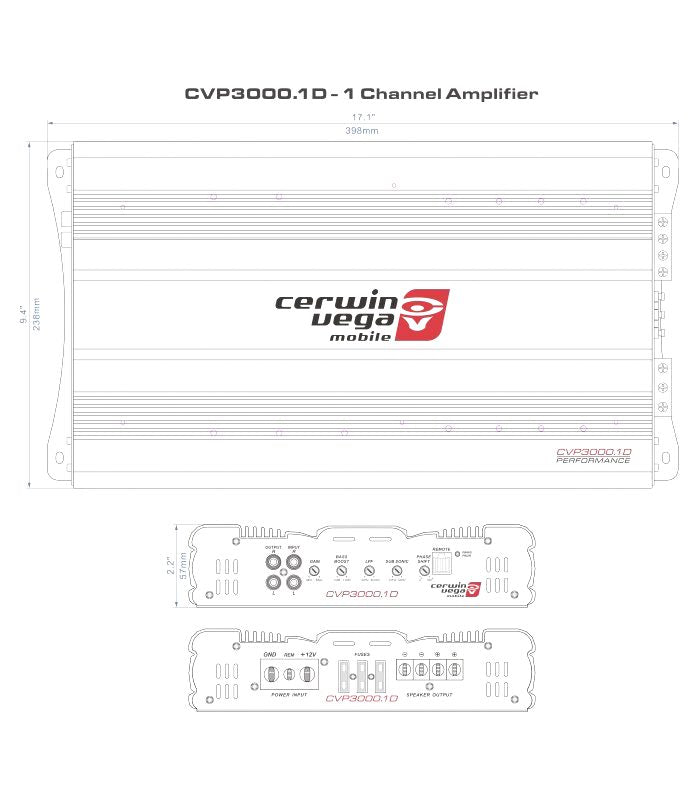

• Dimensions:  15.76″ x 9.38″ x 2.25″ (400mm x 238mm x 57mm)
