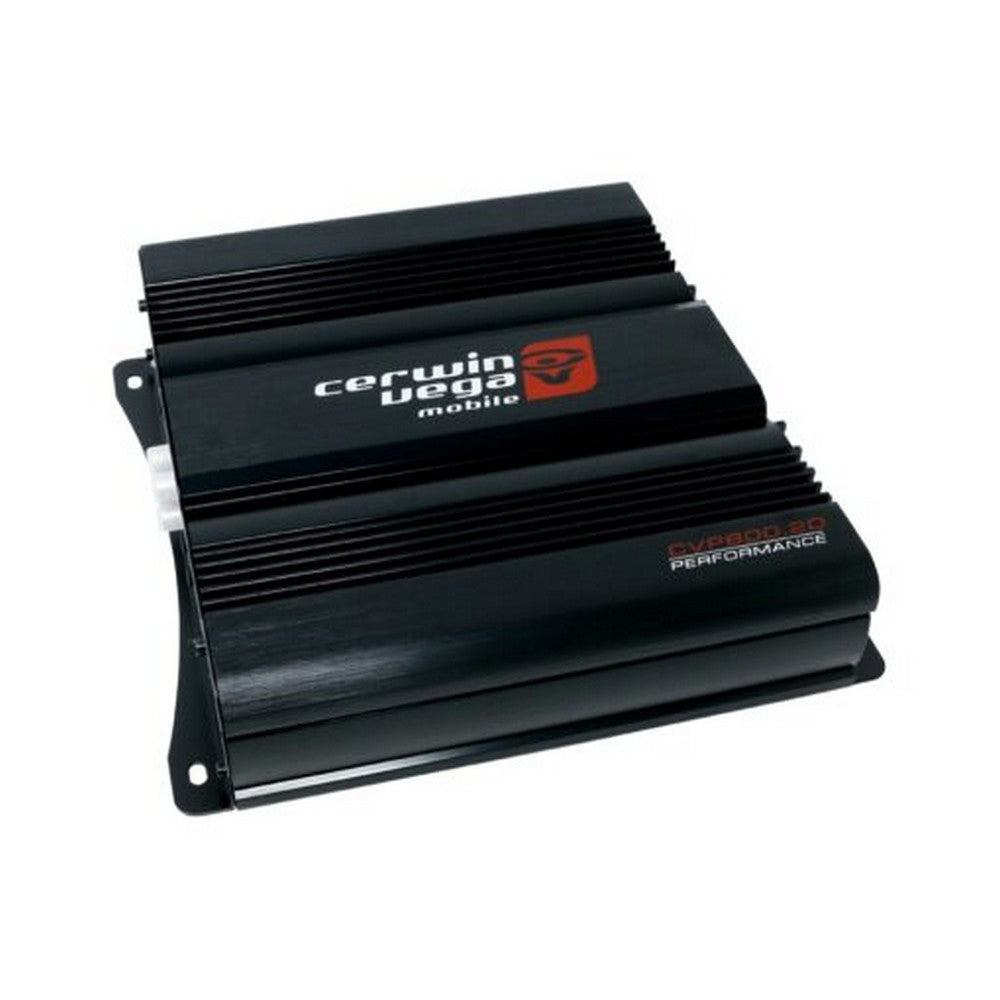

CERWIN VEGA AMPLIFIER CVP SERIES 2CH 60W RMS X 2 @ 4OHM / 85W RMS X 2 @ 2OHM

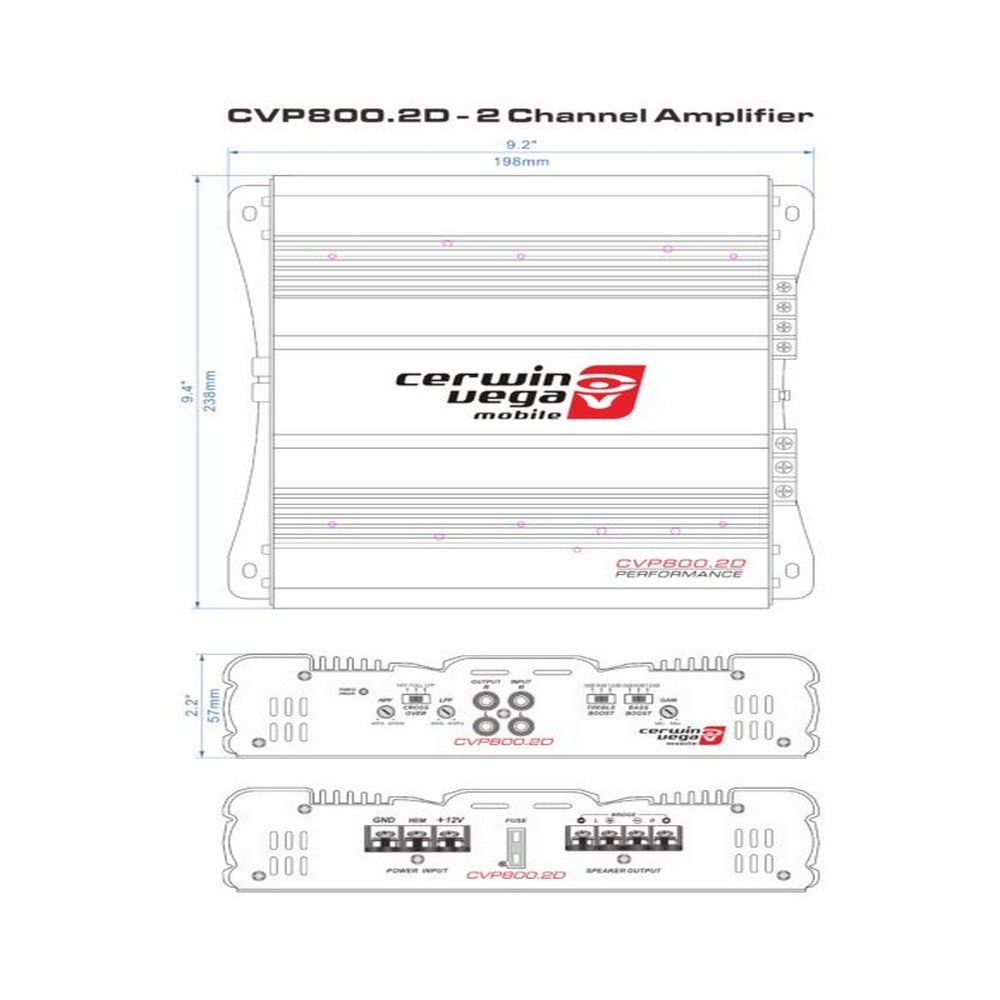

FEATURES: Latest High-Efficiency Class A/B Topology Compact Size with Ambient backlit logo RCA “Pass Thru” output for easy system expansion Fully Variable Crossovers (12dB per octave) Handles HI and LO level input to 12V 2 O Stable Stereo and 4O Mono (CH3/4) for 3 CH mode Proprietary Vega Bass Boost EQ Up To 12dB SPECIFICATIONS 800 MAX Power 2 Channel Amplifier 85W x 2 @ 2O RMS 60W x 2 @ 4O RMS 180W x 1 @ 4O RMS Bridged Mono 2-Ohm Stereo, 4-Ohm Bridged Full Range Operation Direct Short, Thermal, & Overload Circuits Protect Amplifier 200mV-6V High Level or Low-Level RCA Input Variable 12dB High, Low, & Subsonic Crossovers Fuse - 30 amp x 1 Dimensions: 7.88” x 9.38” x 2.25” (200mm x 238mm x 57mm)
