Experience a 6 times* fast charging speed to store the excess power from the car’s alternator, allowing you to make the most of the power throughout your trips. *Compared to traditional car cigarette lighter charging <100W.
6x Fast Charging speed
The Charger1 delivers up to 560W of power- 6X faster than a traditional car charger. Now you can fully charge a 1kWh power station in just 2.5 hours, making it a game-changer for your on-the-go charging experience.
Why Choose Charger1?
High Security: With adjustable voltage, it adapts to all BLUETTI power stations and 95% other models on the market.
Auto On/Off: Charger1 uses an intelligent voltage monitoring algorithm to automatically detect when your vehicle starts or stops, ensuring your vehicle’s battery is protected from unnecessary drain.
Multi-Layer Protection in Every Charge
Protect Your Vehicles Battery: Prevents your car battery from draining, so you can start you vehicle anytime.
Protect the Charger1: Automatic on/off functions and circuit protection to maintain safe operation.
Protect Your Power Station: Customize the output voltage to ensure it perfectly fits to you energy storage system.
Monitor and Control While Driving
With the BLUETTI app, you can easily check the charging status, adjust the voltage directly from your phone, and ensure everything is running smoothly.
Easy Steps to Install
Step 1:
• Check all components in place
• Prepare the tools.
• Ready your power station and solar charging cable.
Step 2:
• Switch off the circuit breaker on the 6AWG DC input cable. (sold separately)
• Connect the 6AWG input cable and the MC4 output cable to the Charger 1.
• Connect the output cable to your power station via a solar charging cable.
Step 3:
• Run the input cable through your car to the car battery.
• Attach the cable to the car battery terminals, red to the positive, black to the negative.
Step 4:
• Switch on the circuit breaker. Set the proper voltage before turn on the Charger 1 on App.
• Find a place to secure the Charger 1 properly.
Output
Default Voltage: 27V
Voltage Range (with 12V battery): 15.0V to 56.0V (adjustable via app)
Voltage Range (with 24V battery): 27.0V to 56.0V (adjustable via app)
Current: 10A
Power: 560W
Input
Input Voltage: 12V -14V / 22.5V - 28V
Input Amperage: 50A - 12V / 25A - 24V
General
Product Function: Increase output voltage (To charge power station)
Compatibility: All BLUETTI power stations & 95% other models on the market.
Protections: Short circuit/anti-reverse/under-voltage/over-temperature
Cooling: Fan cooling
Surge Protection: 60A Circuit Breaker (Optional)
Operating Temperature: -20°C to 60°C / -4°F to 140°F
Protection Grade: IP20
Noise: 50dB Max.
Weight: Approx. 1.2kg / 2.645lbs

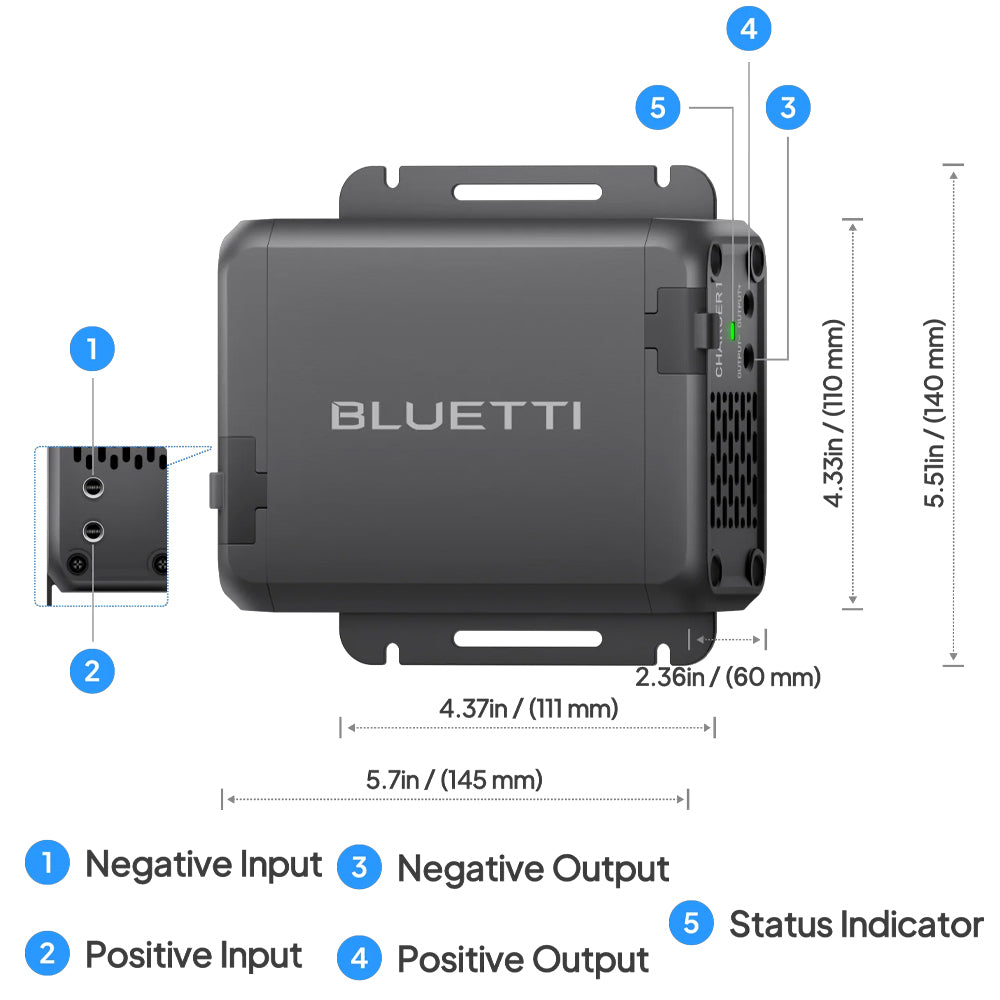

Dimensions (L x W x D): 145mm × 110mm × 60mm / 5.7in × 4.33in × 2.36in
Warranty: 2 Years
App Connection: Bluetooth
