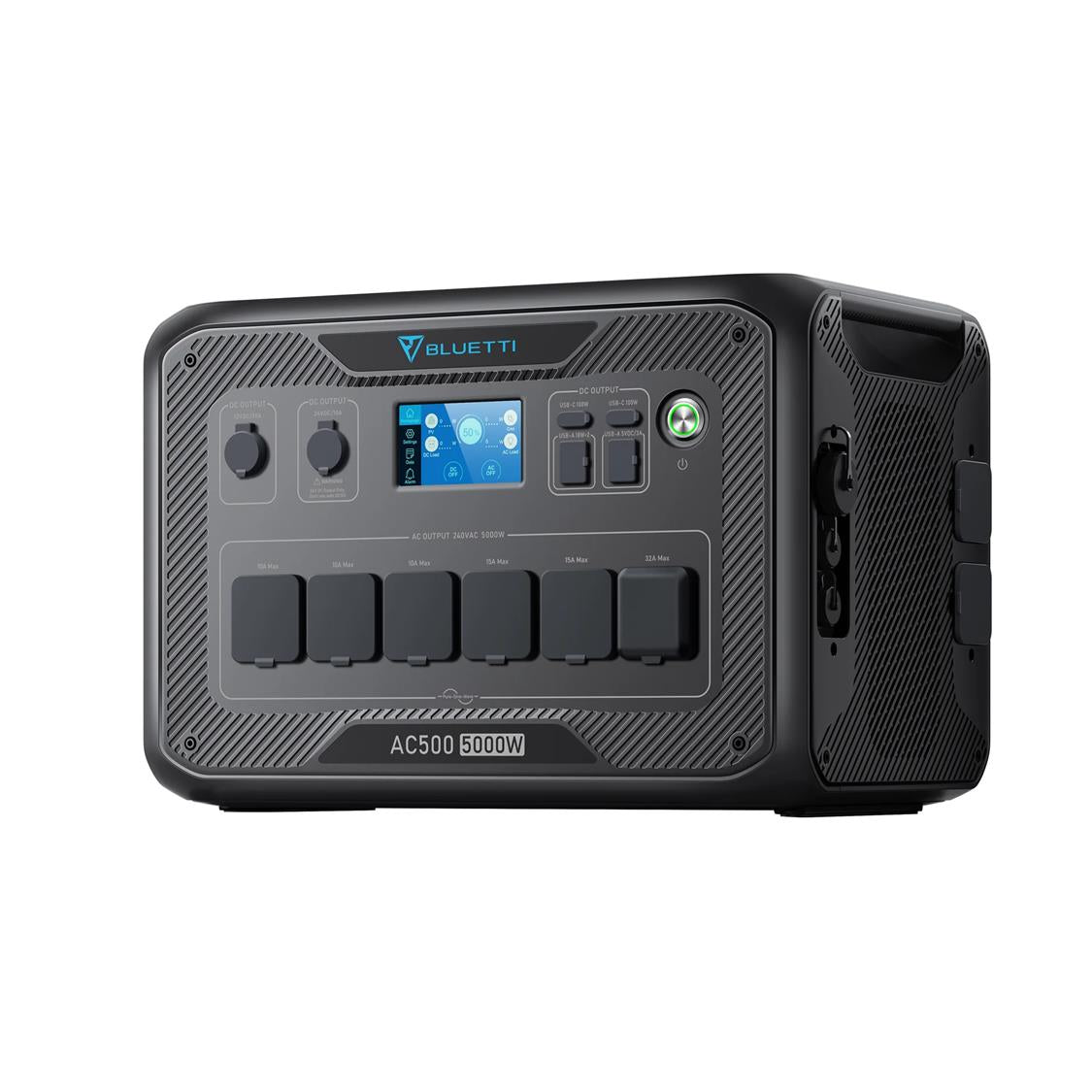

Modular Solar Power System for All Needs

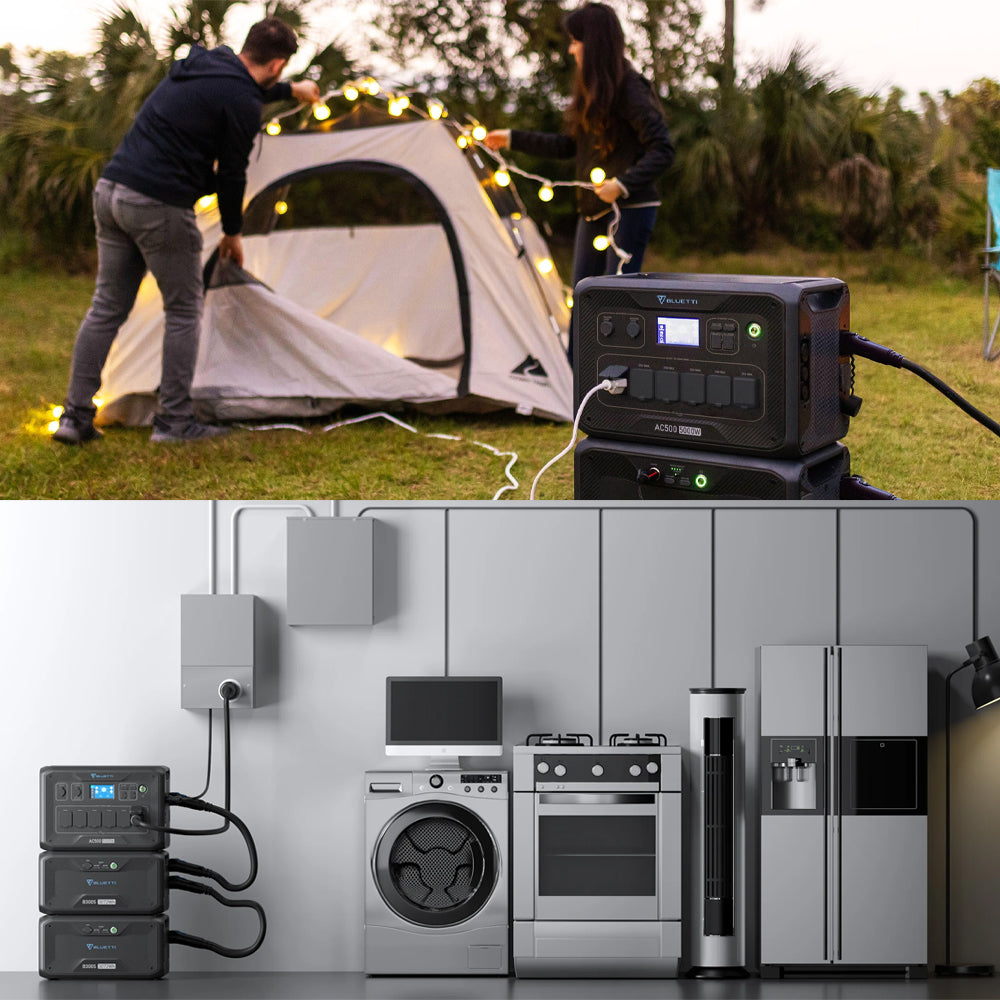

Compatible with B300S and B300 batteries for an expandable power system, AC500 will definitely shift the way you harness the solar energy. It's designed to help you go through power outages, stay connected to unlimited energy wherever you are heading.

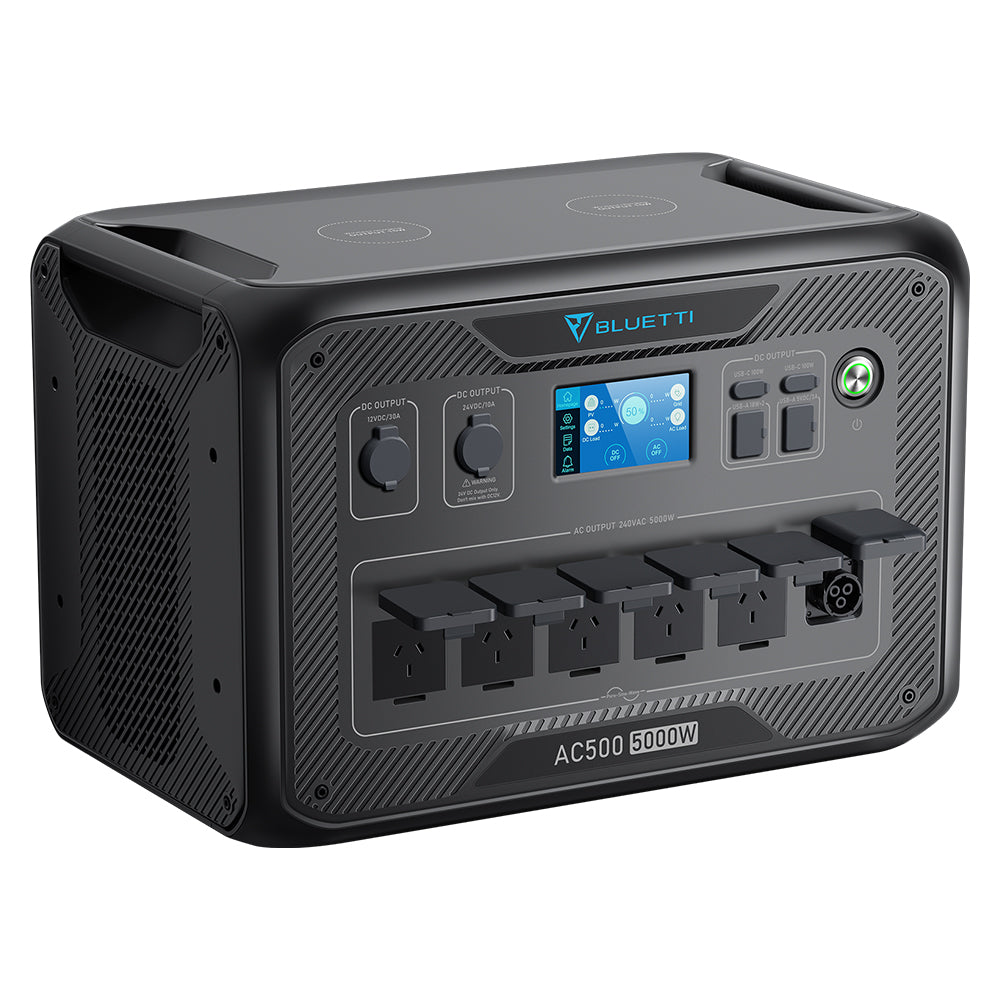

5000W Pure Sine Wave Inverter
This inverter delivers quality pure sine wave output and takes up to 10kW surge, ensuring anything you plug in will be running to its full functionality and capacity.

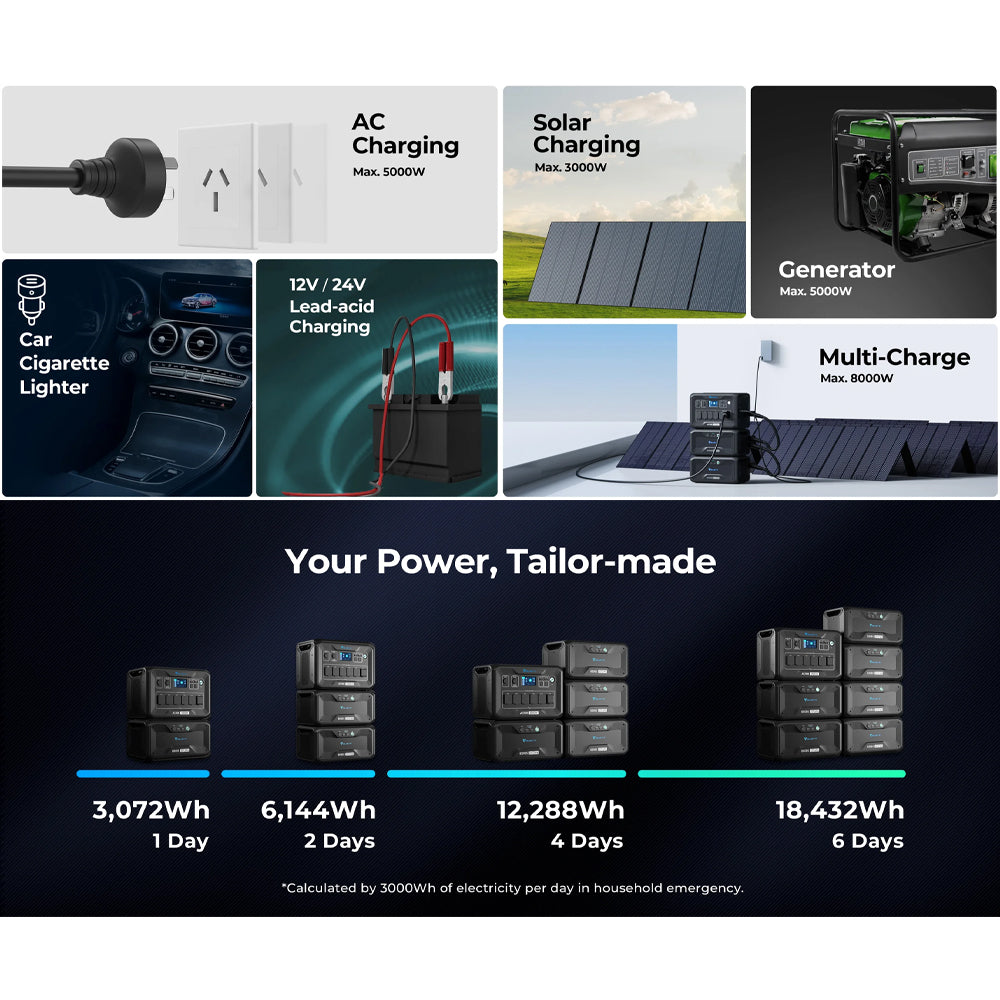

Charge in Any Way You Like
No matter where you are, you can charge your AC500 system at any time. With the wall outlet and solar panels plugged in, the AC500 system supports up to 8,000W impressive input rate (At least 2*B300S packs required). Get the system recharged before you pack up for the camping, and your power will be ready when you are.
Power Option for Personalization

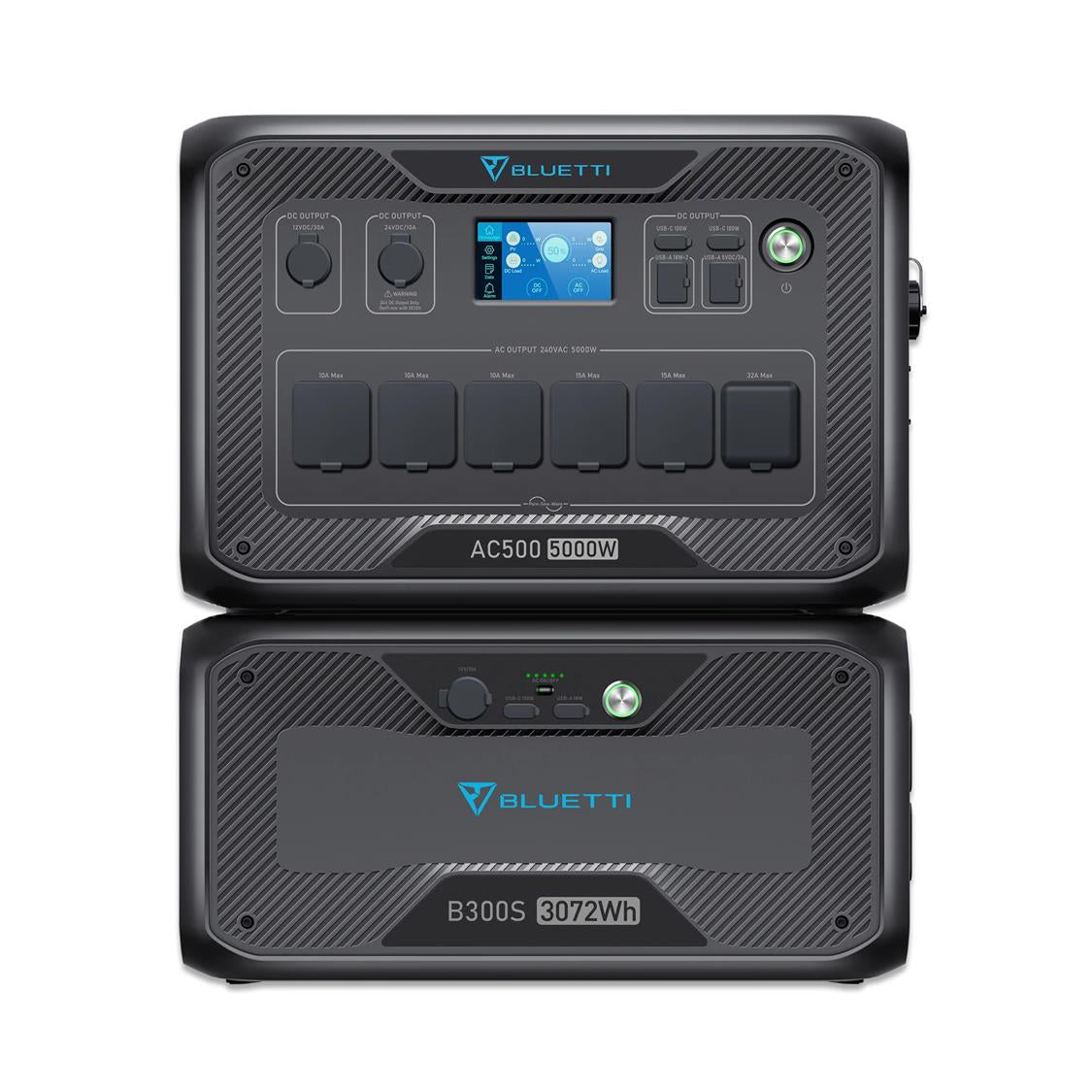

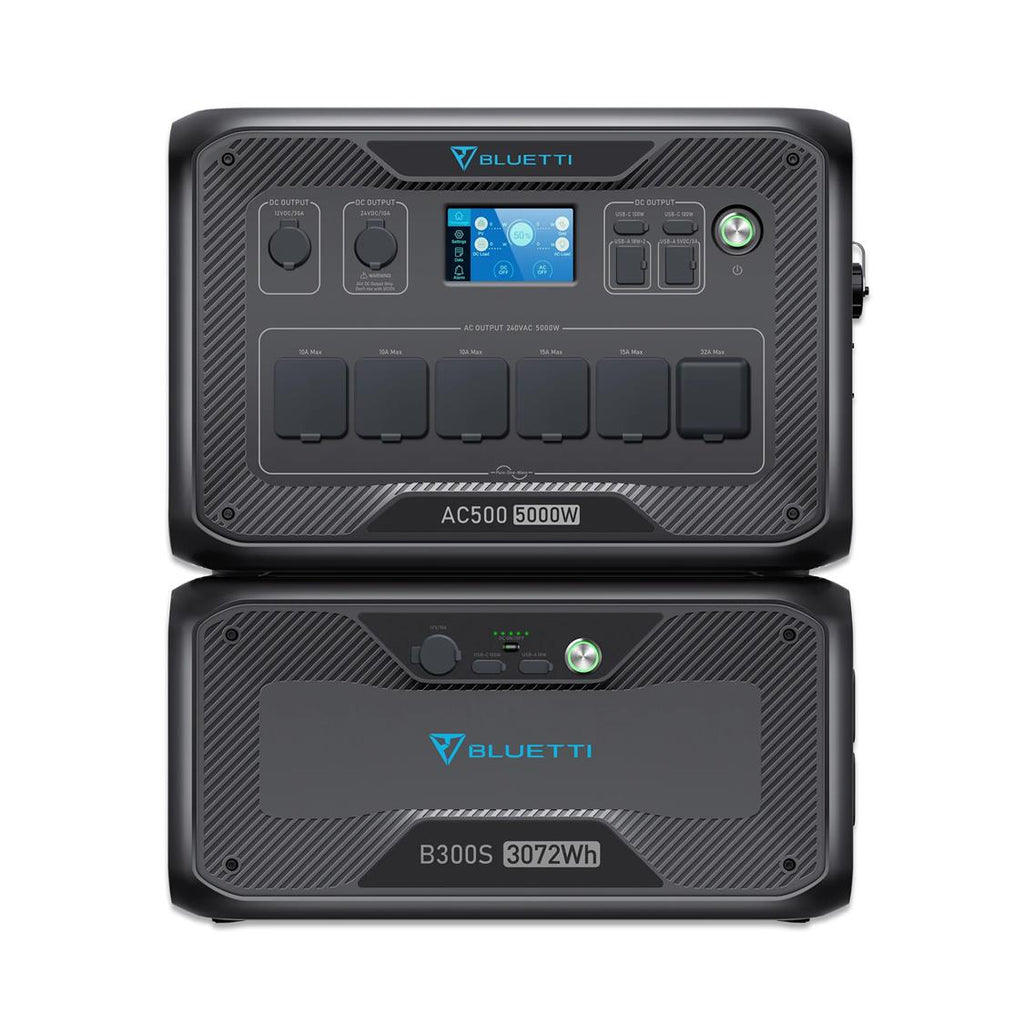

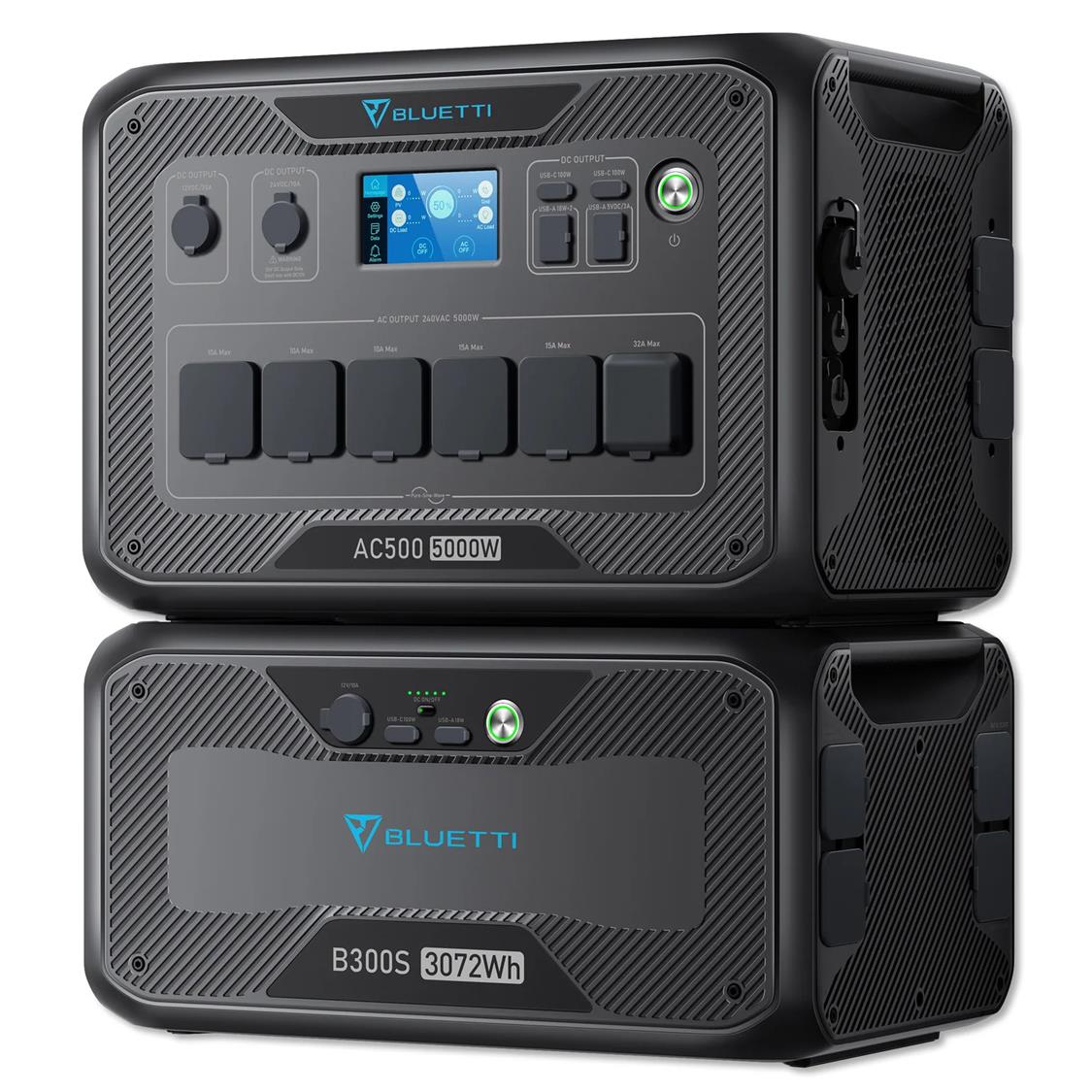

AC500 is 100% modular and can accept up to 6×B300S (3,072Wh each) expansion battery packs, adding up to an overall capacity of 18,432Wh – Power your whole family's basic needs for DAYS either in daily use or power outages!

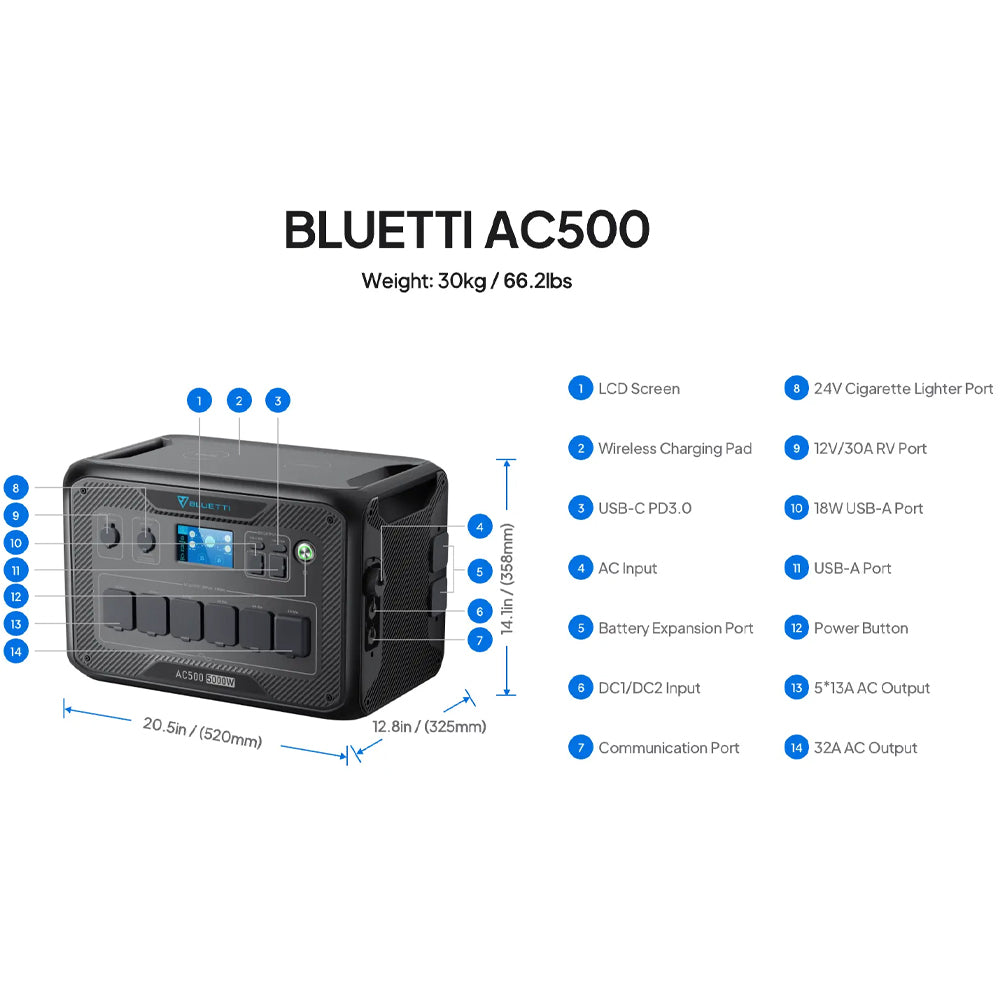

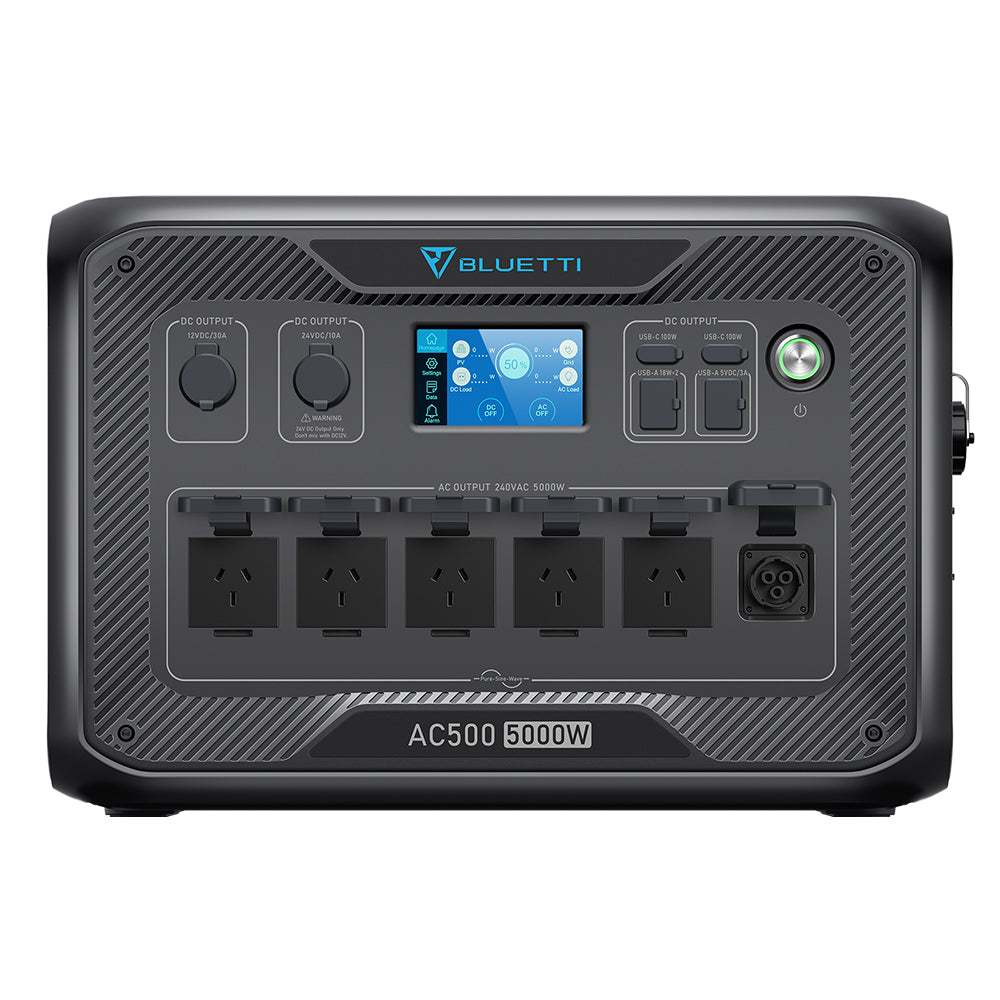

OUTPUT
AC Outlets: 3 x 240V/10A Outlets
2 x 240V/15A
1 x 240V/32A
5,000W In Total
Inverter Type: Pure Sine Wave
Surge Power:10,000W
USB Port: 2 x 5V/3A USB-A
2 x 18W USB-A
2 × USB-C 100W Max.
DC Outlets: 1 x 12V/30A (RV Outlet)
1 x 24V/10A (Car Outlet)
*All regulated.
Wireless Charging Pad: 2 x 15W Max.
INPUT
AC Input: 4,500W Max. (W/ 1*B300S),
5,000W Max. (W/ 2 or more B300S).
Solar Input: 3,000W Max. VOC 12-150VDC, 15A
Car Input: 12/24V from Vehicle Cigarette Lighter Port
Maximum Input: 4,500W (W/ 1*B300S), 8,000W (W/ 2 or more B300S) AC + Solar Dual Charging
GENERAL
App Control: Yes, WiFi & Bluetooth Connection
Scalability: Expandable with 6×B300S or 4×B300
Simultaneous Charge & Discharge: Yes
Weight: 66.2lbs (30kg)

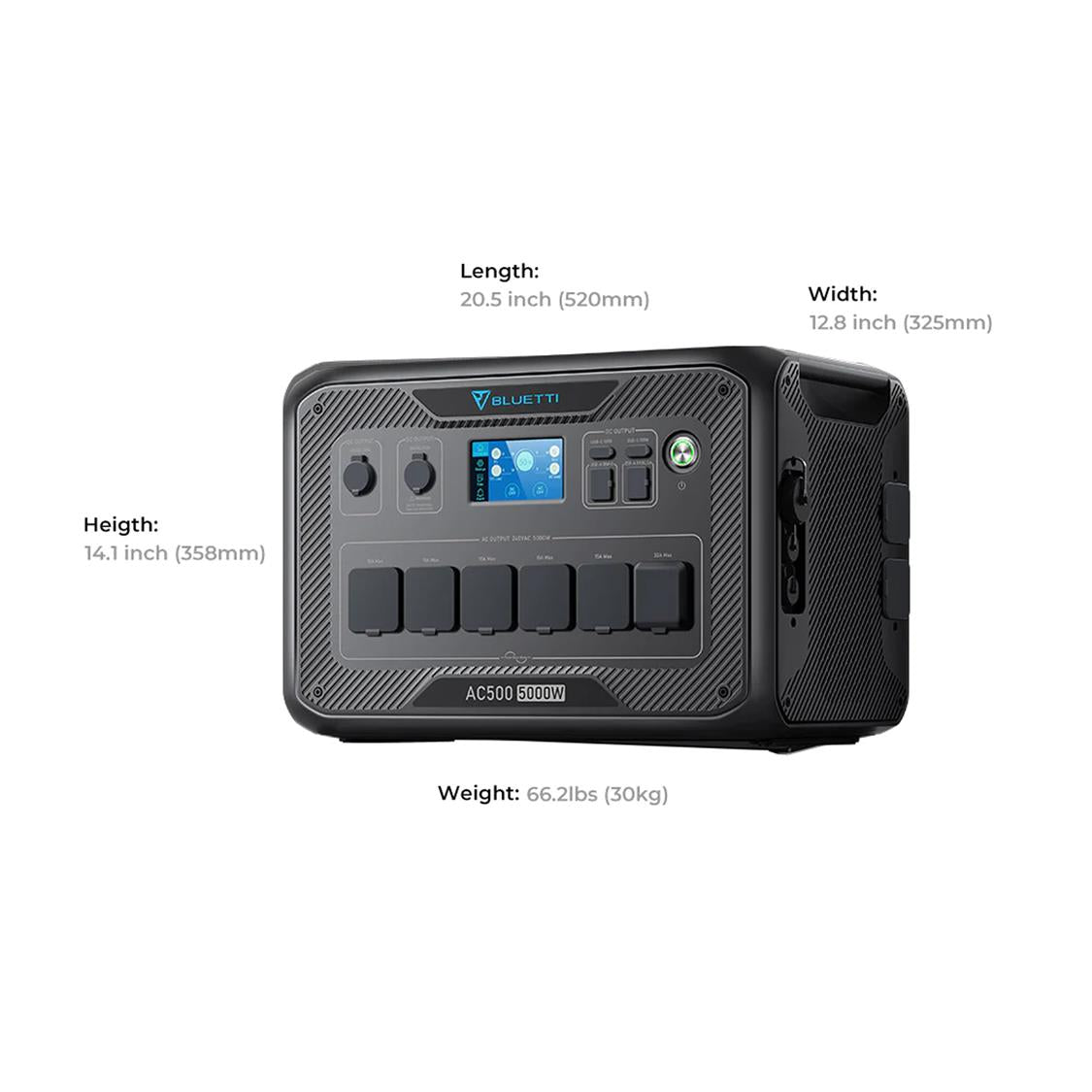

Dimensions (LxWxD): 20.5 x 12.8 x 14.1in ( 52 x 32.5 x 35.8cm)
Operating Temperature: -4?-104? (-20?-40?)
Storage Temperature: -13?-104? (-25?-40?)
Certification: UL2743, UKCA, TELEC, RCM, FCC ID, CE
Warranty: 48 Months
