Full HD 60FPS video and Wi-Fi connectivity
The DR590X-1CH Plus records Full HD 1080p 60FPS videos at a 139-degree wide view angle.
With the Sony STARVISTM imaging sensor, you get awesome image clarity day and night.
Full HD Wi-Fi dashcam
Full HD Sony STARVISTM CMOS sensor recording at 60 frames per second.
Built-in Wi-Fi: easily adjust settings and transfer videos to your phone with the BlackVue App.
60 frames per second recording
The DR590X-1CH-PLUS records super fluid videos at a high frame rate of 60 frames per second. This means videos look lifelike and the dashcam can better catch details in fast moving objects thanks to reduced motion blur.
Native Parking Mode
With included Hardwiring cable
DR590X Plus can be hardwired to your vehicle’s fuse panel for Parking Mode with the included Hardwiring cable. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR590X Plus Series is also compatible with all BlackVue Parking Mode Kits and Batteries.

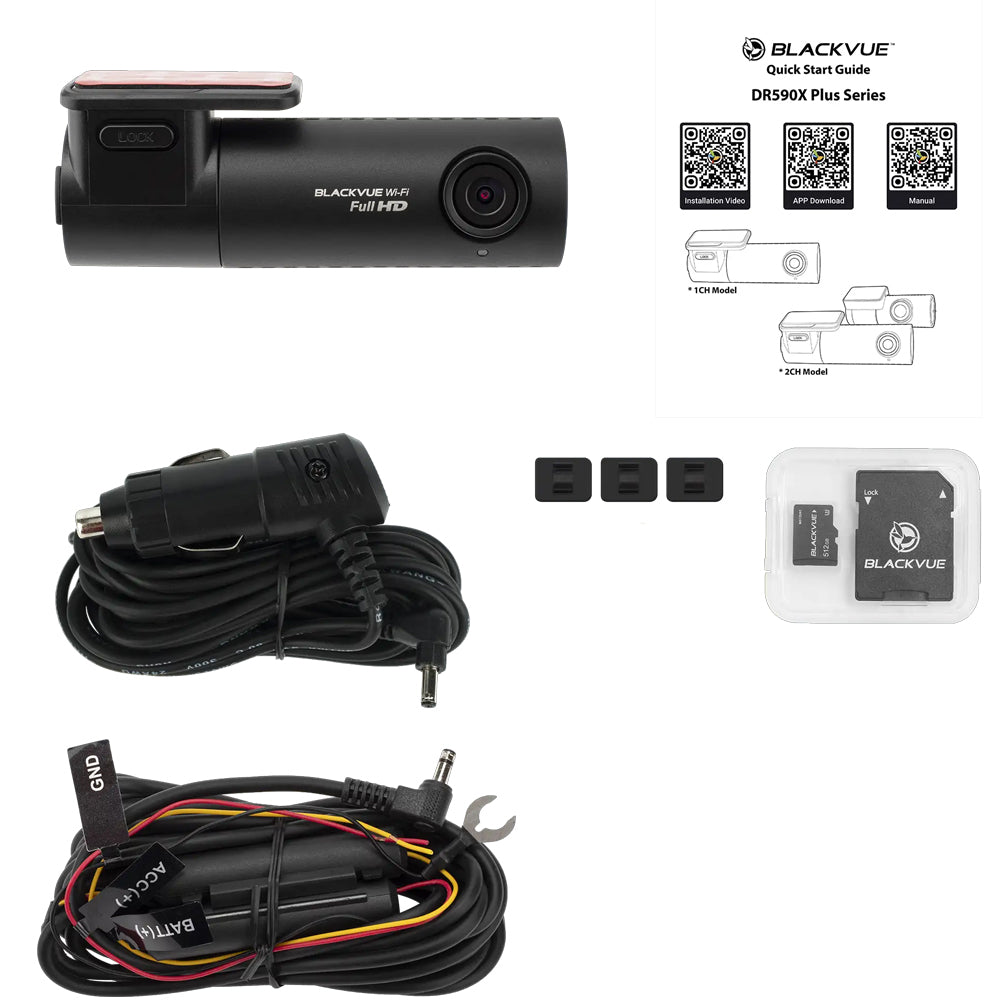

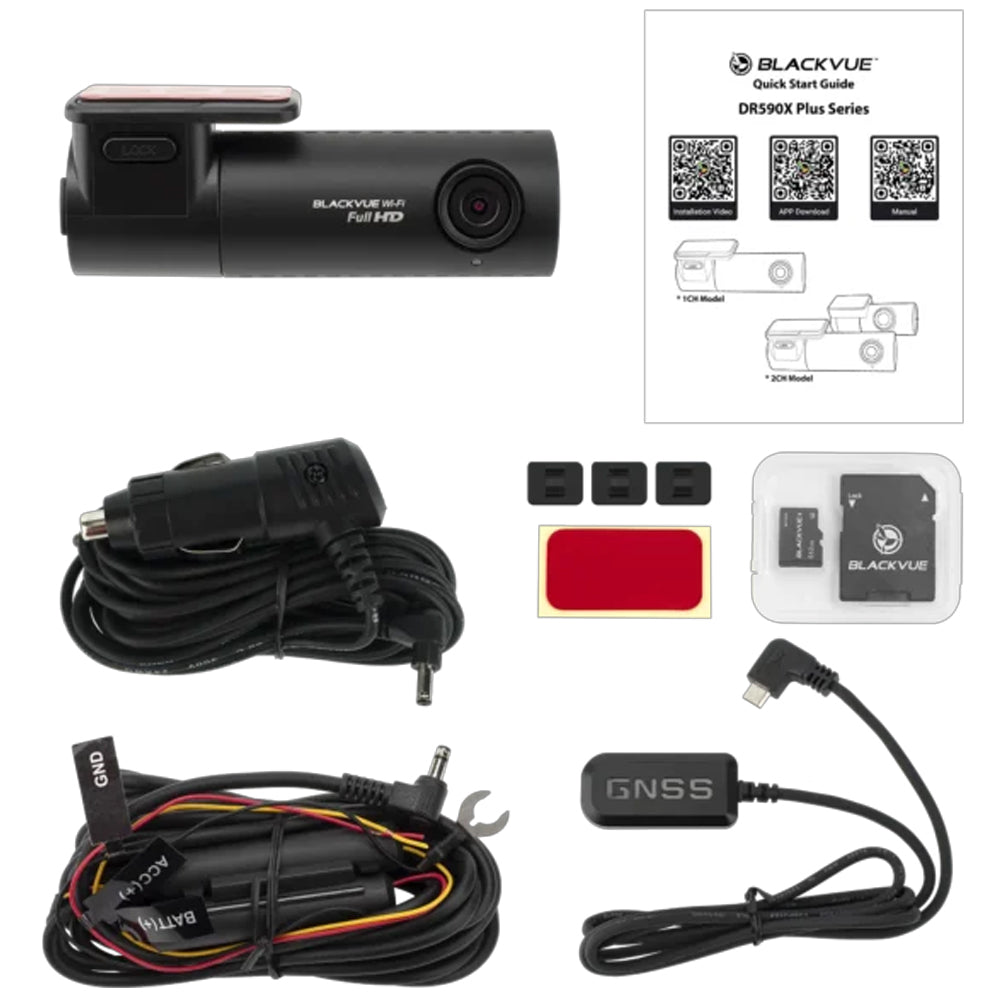

What's included
• Front Camera
• Quick start guide
• Cable clips (3EA)
• microSD card
• microSD card reader
• Hardwiring power cable
• Cigarette lighter power adapter
Specifications
Model Name: DR590X-1CH Plus
Channel: 1CH
Highlights: Full HD 1080p @60fps, Wi-Fi, Sony Sensor
Product Dimensions: Black / Width 111.8 mm x Height 34 mm / 86.3 g
Memory Support: microSD Card (32 GB / 64 GB / 128 GB / 256GB / 512GB)
Recording Modes:
– Normal recording
– Event recording (when impact is detected in normal and parking mode)
– Parking recording (when motion is detected)
Parking Mode: YES (hardwiring cable included)
Parking Mode Event Voice Notifications: YES
Imaging Sensor: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle: Diagonal 131°, Horizontal 116°, Vertical 61°
Resolution Frame Rate : Full HD @60fps
Video Codec: H.264 (AVC)
Image Quality and Bitrate Front/Rear :
Highest (Extreme): 25 Mbps
Highest: 12 Mbps
High: 10 Mbps
Normal: 8 Mbps
Format Free: YES (Adaptive)
Event File Overwrite Protection :YES
SD Card Failure Alert: YES
Scheduled Reboot: YES
Video File Extension: MP4
Wi-Fi: Built-in (802.11n (2.4~2.4835 GHz))
GPS: External (Optional not included)
Microphone: Built-in
Speaker: Built-in
Impact Sensor: 3-Axis Acceleration Sensor
LED Indicators :Recording LED, GPS LED, Wi-Fi LED, Front Security LED
Button: Wi-Fi button: Press once to turn on/off Wi-Fi
Operation Temperature: -20? – 70? (-4°F – 158°F)
Storage Temperature: -20? – 80? (-4°F – 176°F)
High Temp Cut Off: Approx. 70? (158°F)
Backup Battery: Built-in supercapacitor
Input Power: DC 12V-24V (DC Plug (Ø3.5 x Ø1.35)) to Wires (Black: GND/Yellow: B+/Red: ACC)
Power Consumption Hour:
Normal Mode (WiFi On/GPS On): 240mA/hour
Normal Mode (WiFi Off/GPS On): 200mA/hour
Parking Mode (WiFi On/GPS Off): 220mA/hour
Parking Mode (WiFi Off/GPS Off): 180mA/hour
Certifications: FCC, CE, RoHS, Telec, WEEE, IC, RCM
Software: BlackVue Viewer
* Windows 7 or higher and Mac Yosemite OS X (10.10) or higher
Application: BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher)
Others: Adaptive Format Free File Management System
